Cottage JM Stugor & Fritid Hansa 18 m2

Effective thickness 90 mm

Sale price€13.384,00

Carcass/wood thickness

Knotted timber 90 x 130 mm. Also available in 44 and 60 mm timber thickness

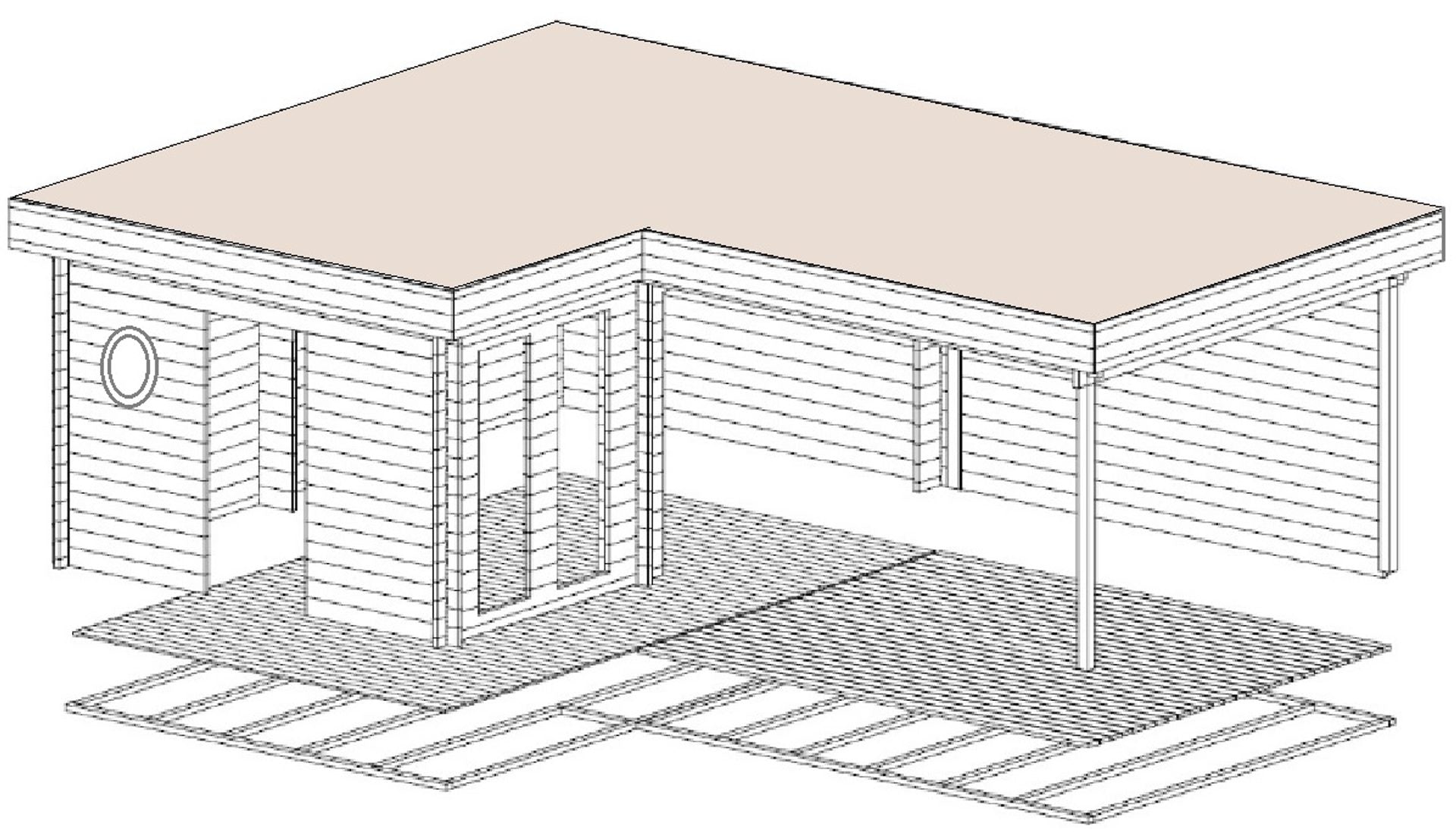

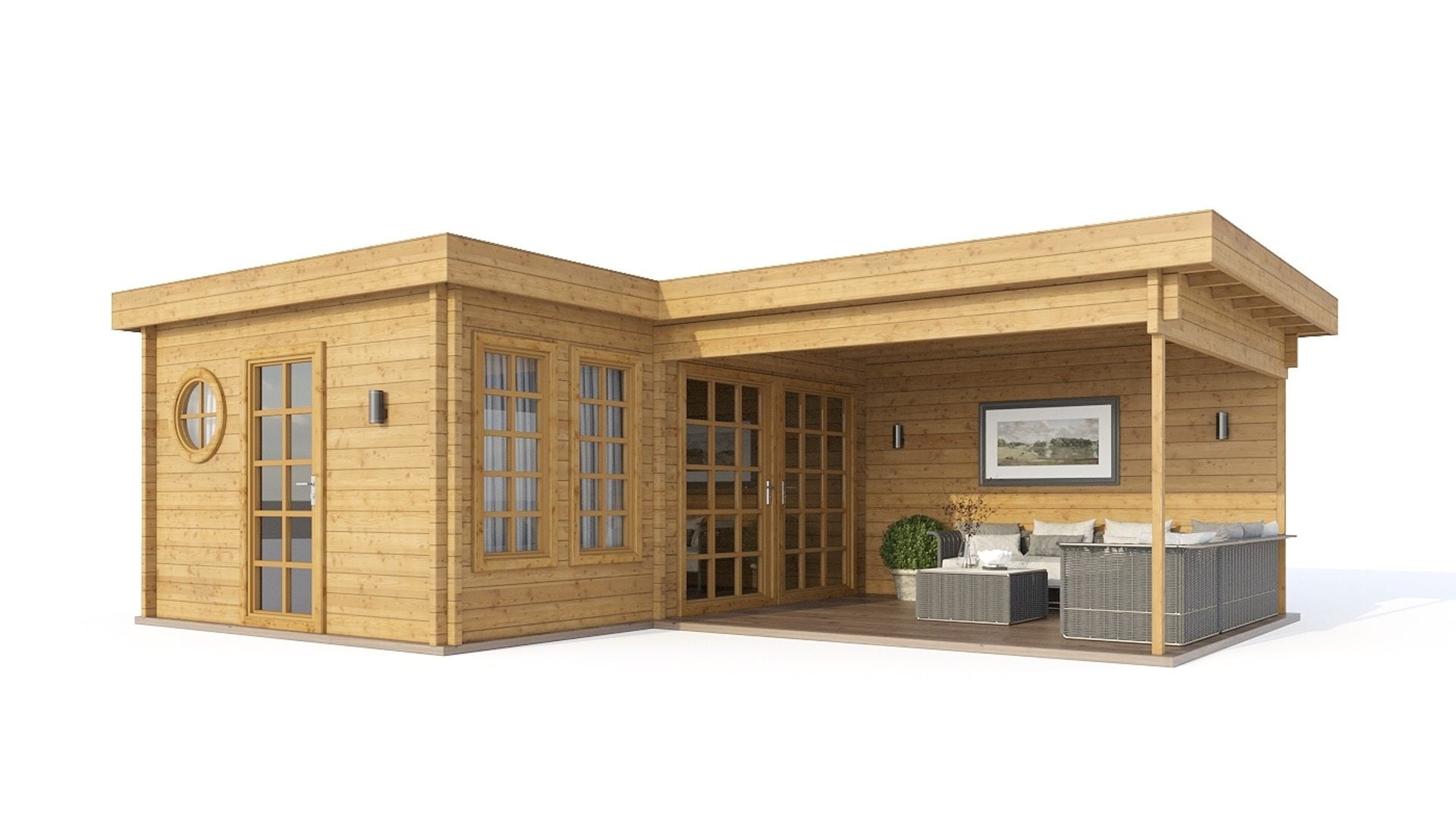

The round window gives the cottage very nice character. Lovely and large light with 2 panoramic windows and 2 fully glazed doors (including 1 double door). Complete construction kit with pre-cut and numbered parts for quick and easy assembly.

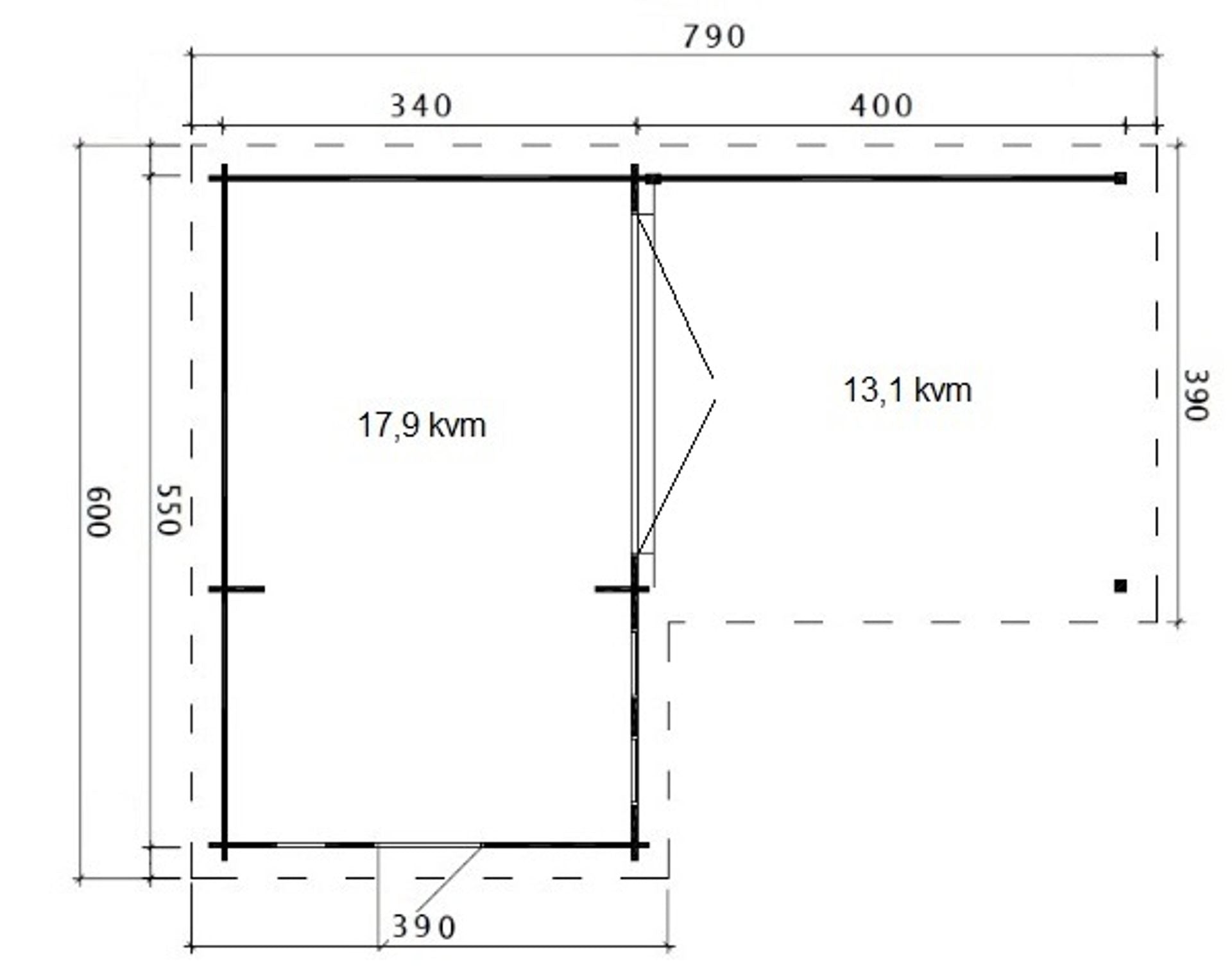

Floor plan

  • Building area: 18 sqm, Room/large cabin: 17.9 sqm, Roofed corner/open room: 13.1 sqm

Windows & doors

  • Openable windows: 2-glazed insulating glass windows, unpainted (depending on choice). U-value 2.6
  • 1. Round window 600 mm diameter, openable. Windows: 2 fixed 680 x 1980 mm
  • Door (full glass) 1 pc. 880 x 1980 mm incl. lock and handle
  • Double door 1 pc (full glass): 1380 x 1980 mm
  • Not included: Roof cladding, insulation, screws and nails.

Addons

Option Front door

Window bars

Specification

Weight Width Height Length Roof pitch Roof bearing capacity mute Floor Tak House type Material (wood) Building area
3100 kg 5,5 m 2.3/2.6 (cam) approx. 2.3 or 2.6 m <5 degrees (pulped) 200 kg/sqm Planed and knotted wall profiles, 60 x 130 or 90 x 130 mm 28 mm finely planed on floor joists 60 x 140/160/180 mm 19 mm x 100 mm planed raw fibreboard on roof ridges 60 x 160/180 mm knotted timber 1.5 planes, any timber thickness 44, 60 or 90 mm (walls) latewood Nordic spruce, untreated and unpainted wood 18 square metres

Package Dimensions

Width Height Depth Volume Weight
N/A N/A N/A N/A 3100kg

Documents

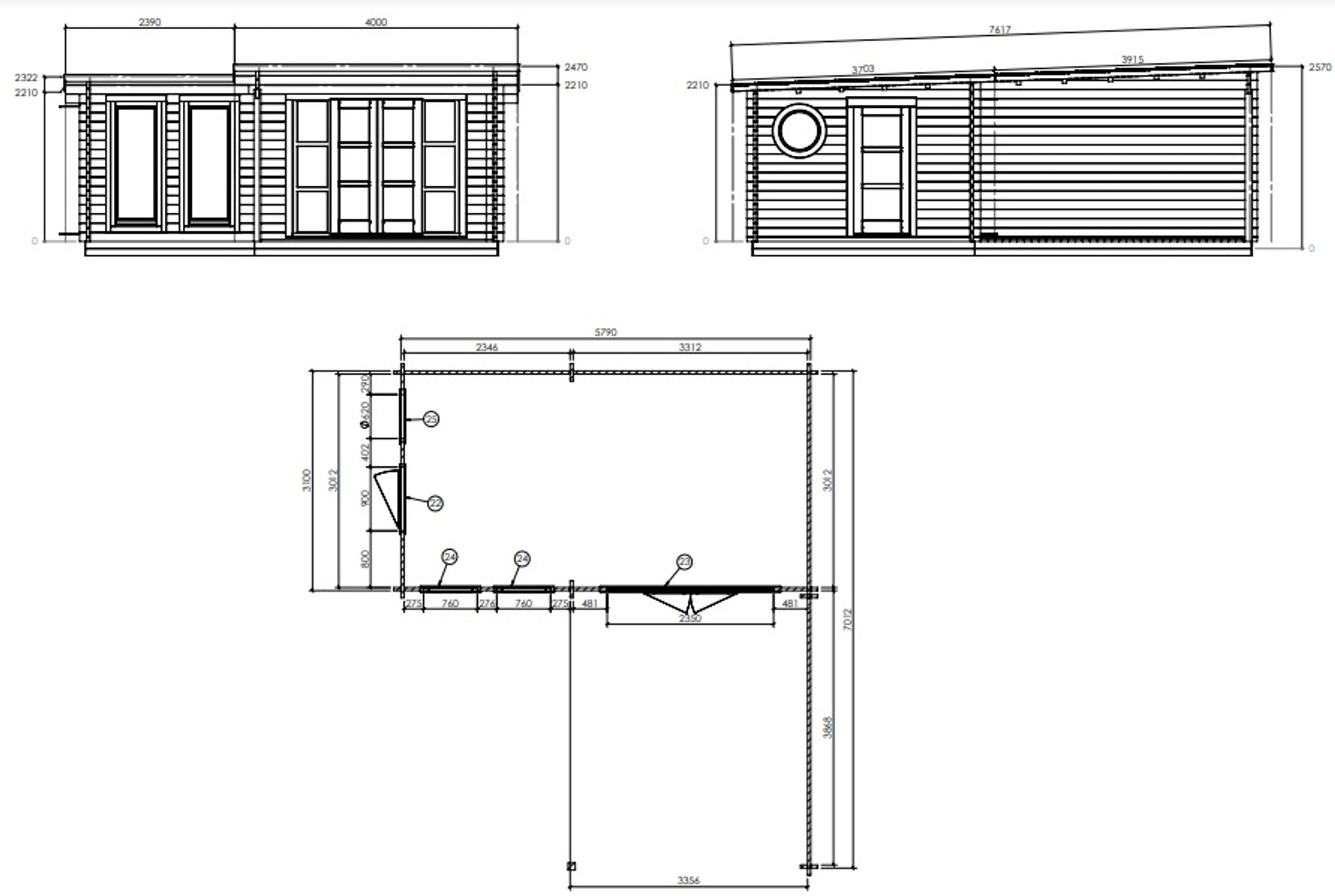

Technical Drawing Open
