Cottage JM Stugor & Fritid Mansard
25 m2, Effective thickness 90 mm
A luxurious and beautiful cottage with mansard roof and sleeping loft.
Luxurious log cabin with mansard roof and loft. The fine timber frame gives character to the cottage. The cottage is suitable for the artist or the small family and gives you a spacious accommodation with a cosy loft at the lowest price on the market.
Windows & doors
- Openable windows: 2-glass insulating glass windows with glazing bars (depending on choice). U-value 1.1. Optional 3-glass (U-value 2.6).1 external door 1900x800 mm (HxW), right-hung (6-glass/ glazing bars), incl. handle, fittings and lock.4 windows 1200x1400 mm (2-light, 6+6 glass/ glazing bars).1 window 800x600 mm (1-light, 6 glass/ glazing bars).
- 2 loft windows 600x1000 mm (side hung/lying), 2-light, 6+6 glasses/transoms, incl. fittings and pressure.1 double/outer door 1900x1400 mm (HxW), incl. pressure, fittings and lock.All windows and window doors in 2-glass continuous transoms (small glass/panes inside and outside).Staircase to the loft.Not included: Roofing, insulation, screws and nails.

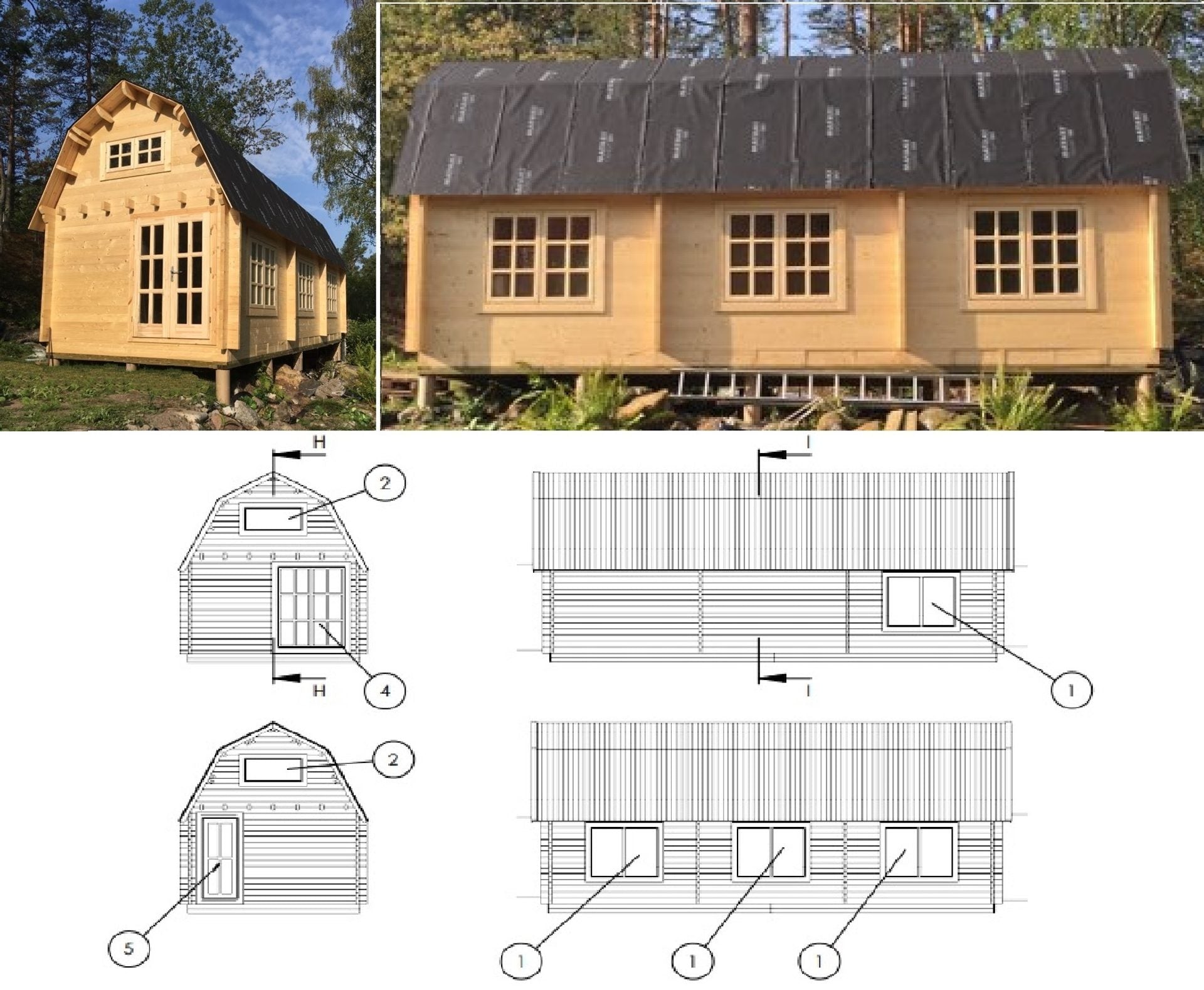

Floor plan (see example drawing)
Building area: 28.5 sqm, Living area: approx. 36.8 sqm, 27.6 + 9.2 sqm (loft), Living room: approx. 18.4 sqm. Bedroom: approx. 9.2 sqm, sleeping loft: approx. 9.2 sqm (the maximum free height of the loft in the centre is approx. 1.75 m), Ceiling heights: Living room approx. 3.9 m. Bedroom approx. 2.3 m.
Luxurious log cabin with mansard roof and loft. The fine timber frame gives character to the cottage. Smart, bright and open floor plan with about 27 sqm on the ground floor and a cosy loft of about 9 sqm which provides open space for storage, beds and guests.
- Building area: 28.5 sqm
- Living area: approx. 36.8 sqm, 27.6 + 9.2 sqm (loft)
- Floor and roof boards are finely planed and tongue-and-groove for good dimensional stability
- The timber is durable late-grown Nordic spruce
- 2-glazing/ISO as standard in windows and doors
Tak
- 19x100 mm plywood, finely planed and well-fitted for good stability
- Roof boxes pre-cut in 60 x 160 mm
- Wind boards raw plan included
- Eaves boards included
Windows
- Lining inside and outside (untreated double glazing). Glazing bars available as an option.
- Genuine double glazing/ISO (U-value 2.6)
- Pushbuttons/knobs/handles and fittings included
- Opening in 2 directions (hinged & side-hung)
Doors
- Exterior lining
- Enter door with window
- Interior wooden doors + lining
- Handle+cylinder lock+keys
- Adjustable door hinges
Floor
- Flooring beams 60 x 140 mm, pre-cut
- Fine planed wood flooring in 28 mm thickness
- Battens included
- Flooring, fine planed wood flooring in 28 mm
Windows & doors
- Opening windows: double-glazed insulating glass windows. Glazing bars available as an option.
- 1 external door 1900x800 mm (HxW), (6 glass/transoms), incl. handle, fittings and lock
- 4 windows 1200x1400 mm (2-light, 6+6 glass/transoms)
- 1 window 800x600 mm (1-light, 6 glass/transoms)
- 2 loft windows 600x1000 mm (side-hung/lying), 2-light, 6+6 glasses/transoms, incl. fittings and pressure
- 1 double/outer door 1900x1400 mm (HxW), incl. pressure, fittings and lock
- All windows and window doors in 2-glass continuous intermediate glazing (small glass/panes inside and outside)
- Staircase to the loft: 1 piece included.
- Not included: Roof cladding, insulation, screws and nails
- 5 years warranty
- Spun roof & floor boards
- Heavily dimensioned roof ridges
- Heavy floor joists
- Fine planed floor and roof boards
- Very good fit on all parts
- Easy and fast assembly
- Marked, numbered and pre-cut parts
- Rubber seals & silicon (windows & doors)
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Nuttimbered walls with double hooks/particle board
- Strong glulam cross beams
- Glued timber door frame
- Parts supplied unfinished
- Pivot & side hung windows
- Trims & fittings
- Handles+cylinder locks+keys included for internal doors. Optional for exterior doors
- Window & door liners (for double glazed unpainted). Optional glazing bars available.
- Adjustable door hinges
Cottage JM Stugor & Fritid Mansard
Sale price€19.634,00
Regular price (/)
25 m2, Effective thickness 90 mm
A luxurious and beautiful cottage with mansard roof and sleeping loft.
Luxurious log cabin with mansard roof and loft. The fine timber frame gives character to the cottage. The cottage is suitable for the artist or the small family and gives you a spacious accommodation with a cosy loft at the lowest price on the market.
Windows & doors
- Openable windows: 2-glass insulating glass windows with glazing bars (depending on choice). U-value 1.1. Optional 3-glass (U-value 2.6).1 external door 1900x800 mm (HxW), right-hung (6-glass/ glazing bars), incl. handle, fittings and lock.4 windows 1200x1400 mm (2-light, 6+6 glass/ glazing bars).1 window 800x600 mm (1-light, 6 glass/ glazing bars).
- 2 loft windows 600x1000 mm (side hung/lying), 2-light, 6+6 glasses/transoms, incl. fittings and pressure.1 double/outer door 1900x1400 mm (HxW), incl. pressure, fittings and lock.All windows and window doors in 2-glass continuous transoms (small glass/panes inside and outside).Staircase to the loft.Not included: Roofing, insulation, screws and nails.
Floor plan (see example drawing)
Building area: 28.5 sqm, Living area: approx. 36.8 sqm, 27.6 + 9.2 sqm (loft), Living room: approx. 18.4 sqm. Bedroom: approx. 9.2 sqm, sleeping loft: approx. 9.2 sqm (the maximum free height of the loft in the centre is approx. 1.75 m), Ceiling heights: Living room approx. 3.9 m. Bedroom approx. 2.3 m.
Luxurious log cabin with mansard roof and loft. The fine timber frame gives character to the cottage. Smart, bright and open floor plan with about 27 sqm on the ground floor and a cosy loft of about 9 sqm which provides open space for storage, beds and guests.
- Building area: 28.5 sqm
- Living area: approx. 36.8 sqm, 27.6 + 9.2 sqm (loft)
- Floor and roof boards are finely planed and tongue-and-groove for good dimensional stability
- The timber is durable late-grown Nordic spruce
- 2-glazing/ISO as standard in windows and doors
Tak
- 19x100 mm plywood, finely planed and well-fitted for good stability
- Roof boxes pre-cut in 60 x 160 mm
- Wind boards raw plan included
- Eaves boards included
Windows
- Lining inside and outside (untreated double glazing). Glazing bars available as an option.
- Genuine double glazing/ISO (U-value 2.6)
- Pushbuttons/knobs/handles and fittings included
- Opening in 2 directions (hinged & side-hung)
Doors
- Exterior lining
- Enter door with window
- Interior wooden doors + lining
- Handle+cylinder lock+keys
- Adjustable door hinges
Floor
- Flooring beams 60 x 140 mm, pre-cut
- Fine planed wood flooring in 28 mm thickness
- Battens included
- Flooring, fine planed wood flooring in 28 mm
Windows & doors
- Opening windows: double-glazed insulating glass windows. Glazing bars available as an option.
- 1 external door 1900x800 mm (HxW), (6 glass/transoms), incl. handle, fittings and lock
- 4 windows 1200x1400 mm (2-light, 6+6 glass/transoms)
- 1 window 800x600 mm (1-light, 6 glass/transoms)
- 2 loft windows 600x1000 mm (side-hung/lying), 2-light, 6+6 glasses/transoms, incl. fittings and pressure
- 1 double/outer door 1900x1400 mm (HxW), incl. pressure, fittings and lock
- All windows and window doors in 2-glass continuous intermediate glazing (small glass/panes inside and outside)
- Staircase to the loft: 1 piece included.
- Not included: Roof cladding, insulation, screws and nails
- 5 years warranty
- Spun roof & floor boards
- Heavily dimensioned roof ridges
- Heavy floor joists
- Fine planed floor and roof boards
- Very good fit on all parts
- Easy and fast assembly
- Marked, numbered and pre-cut parts
- Rubber seals & silicon (windows & doors)
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Nuttimbered walls with double hooks/particle board
- Strong glulam cross beams
- Glued timber door frame
- Parts supplied unfinished
- Pivot & side hung windows
- Trims & fittings
- Handles+cylinder locks+keys included for internal doors. Optional for exterior doors
- Window & door liners (for double glazed unpainted). Optional glazing bars available.
- Adjustable door hinges
Addons
Option Front door
Extra Inner Door
Window bars
Specification
| Weight | Width | Height | Length | Roof bearing capacity | mute | Floor | Tak | House type | Material (wood) | Building area | Takyta |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7800 kg | 3,3 m | 3,9 m | 5,2 m | about 250 kg/sqm | Planed and knotted wall profiles 60 x 130 or 90 x 130 mm | 28 mm finely planed on floor joists 60 x 140/160/180 mm | 19 mm x 100 mm finely planed raw fibreboard on roof ridges 60 x 140/160/180 mm | Knotted timber 1.5 planes, any timber thickness 44, 60 or 90 mm (walls) | Latewood Nordic spruce, untreated and unpainted wood | 25 square metres | 44 square metres |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| 1200mm | 900mm | 6000mm | N/A | 7800kg |
| 1200mm | 900mm | 6000mm | N/A | N/A |
| 1200mm | 900mm | 6000mm | N/A | N/A |
| 1200mm | 900mm | 6000mm | N/A | N/A |
Documents
| Technical Drawing | Open |
|---|
