Cottage JM Stugor & Fritid Matilda 50 m2
Effective thickness 90mm
Carcass/wood thickness
Knotted timber 90 x 130 mm. Also available in 44 and 60 mm timber thickness

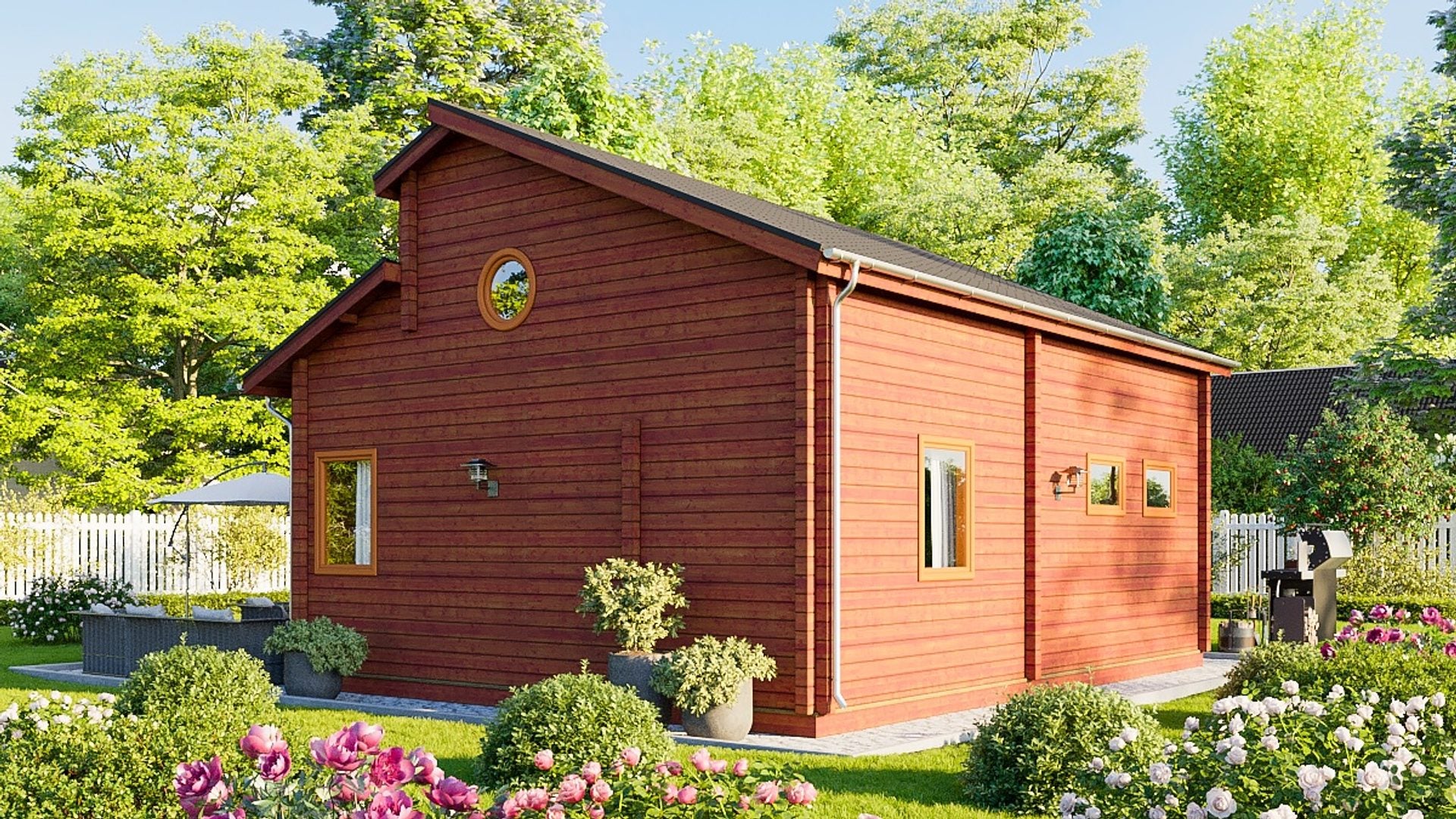

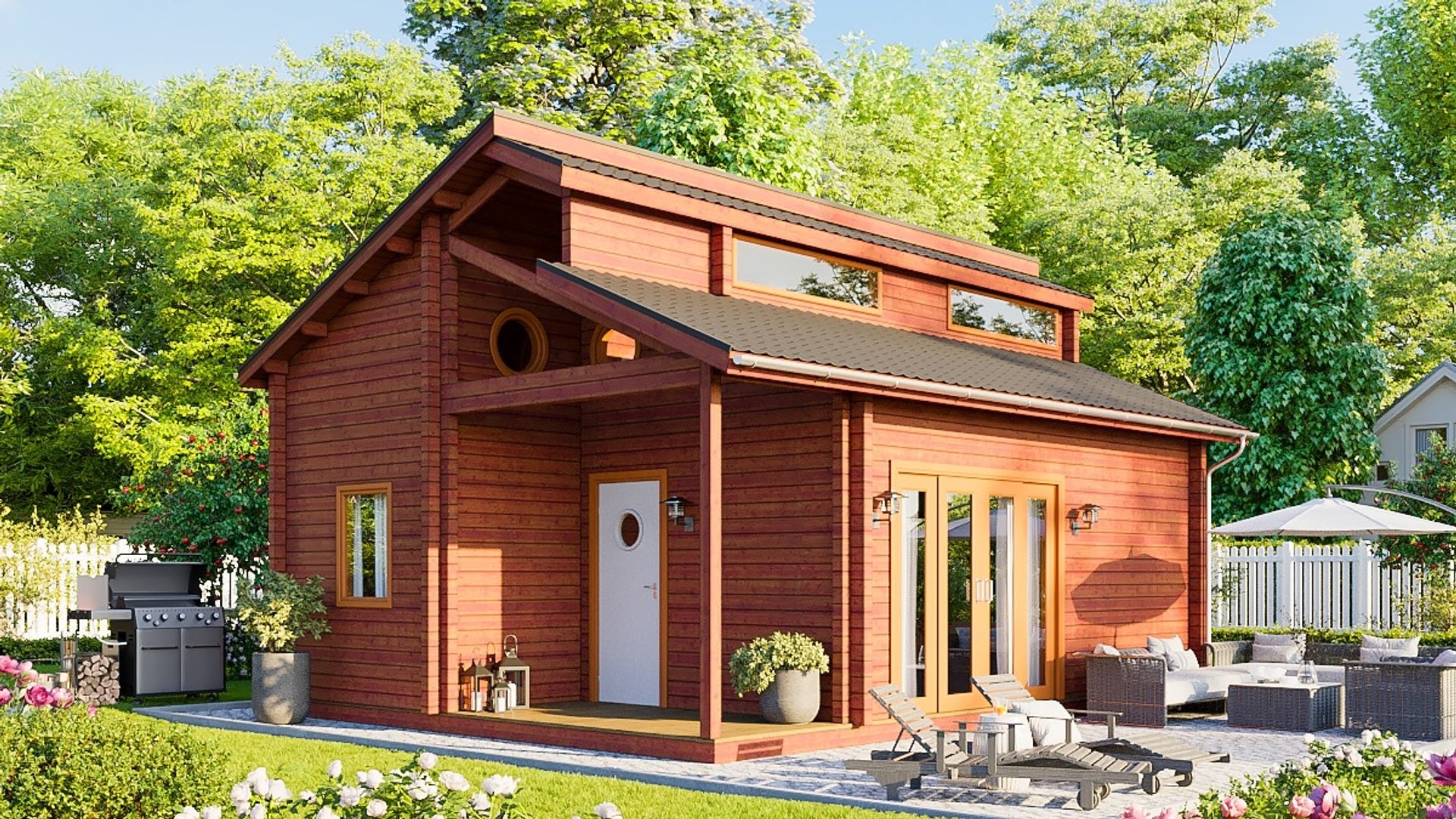

The cottage with very modern character and stylish design, with open plan and cool loft solution with "cat attic" for practical storage and much more. The building area is about 38 sqm plus sleeping loft of almost 13 sqm and storage of 5 sqm. Nice glass railing in the loft and 3 round windows. Matilda is suitable for the small family and gives you a spacious accommodation with a cosy loft. A well-planned holiday home with lovely light and nice open living areas. Airy floor plan. A holiday home large enough for a private bathroom, open kitchen with living room.

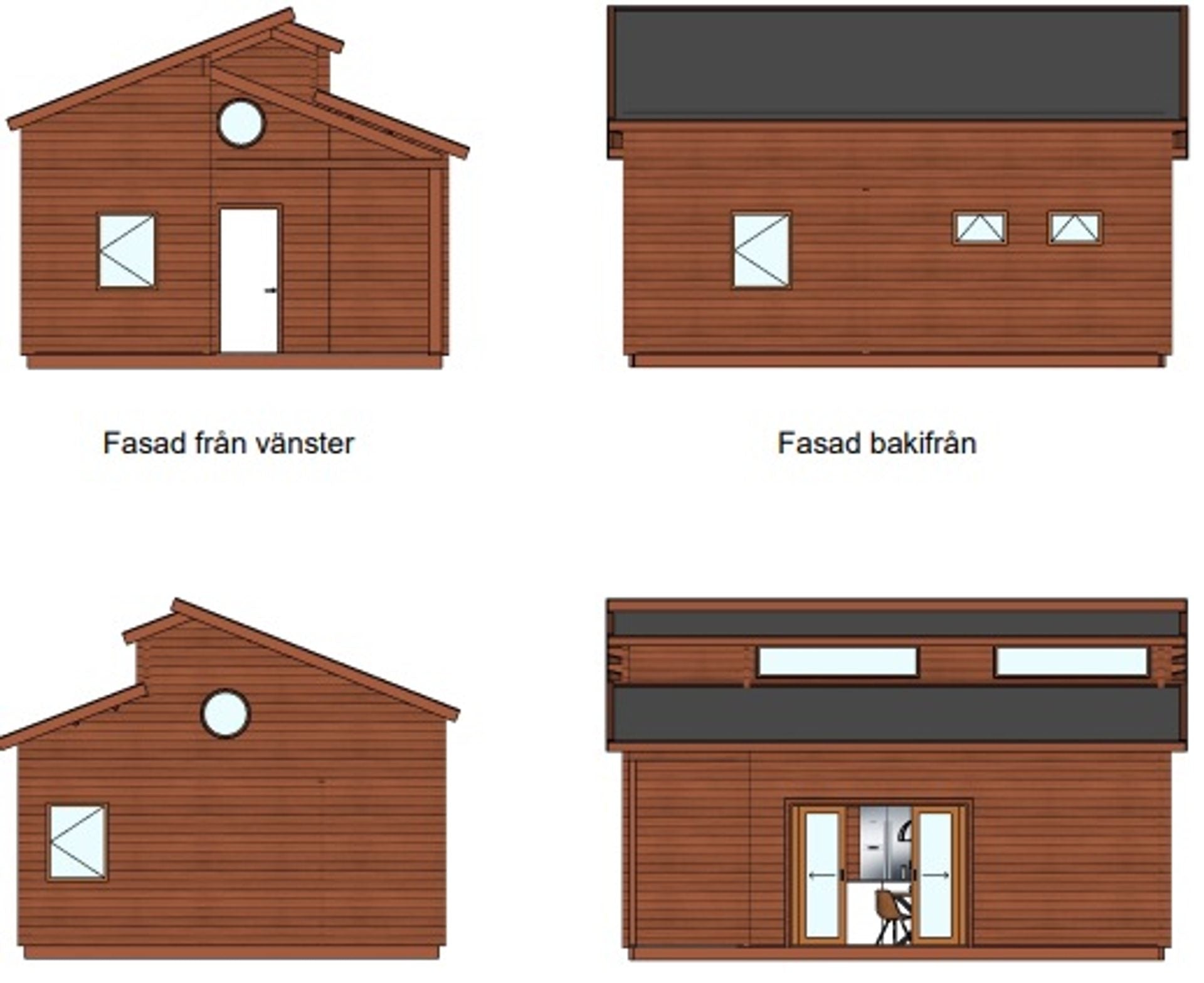

Windows & doors
- Openable windows: 2 glass insulated windows. See Option 3-glass, glazing bars etc.
- 1 sliding section 2500 x 2000 mm (W x H)
- 3 round windows (fixed) 600 mm diameter
- 3 windows 760 x 1000 mm, 2 windows 2200 x 480 mm (fixed)
- 2 windows 760 x 480 mm (overhung)
- Entrance door (with/without glass): 900 x 2000 mm, incl. lock, lock, overhanging. 760 x 480 mm (overhung)
- Entry door (with/without glass, U-value 1.1): 900 x 2000 mm, incl. lock, handle, keys, insulating glass with glazing bars
- 1 inner door 900 x 2000 mm incl. lock and handle
- Staircase to loft: 1 included
- Glass railing included to loft
- Not included: Roof covering, insulation, screws and nails.

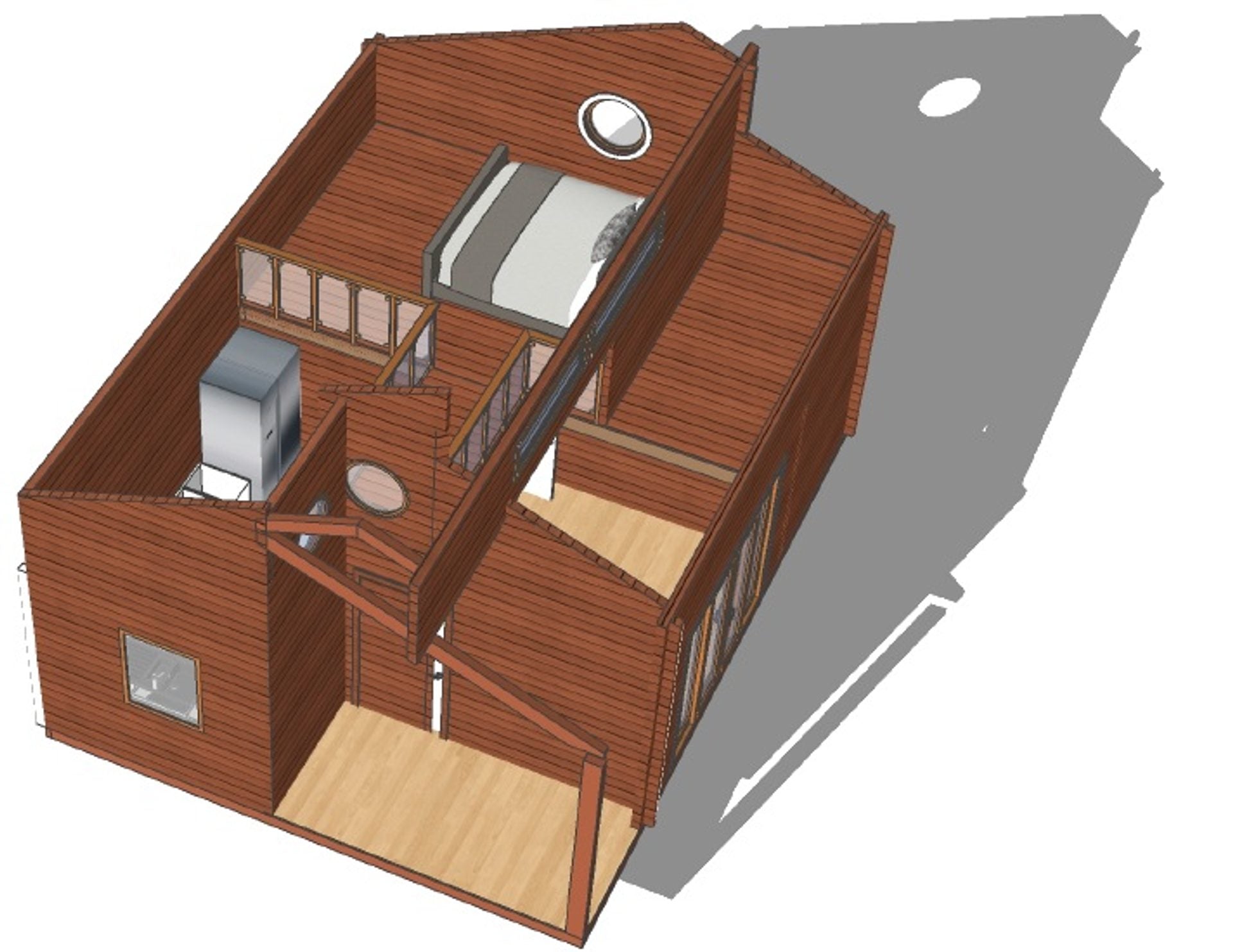

Floor plan
Building area: 38 sqm, Living area: approx. 50 sqm, 38+12 sqm (loft) + "cat attic" / storage approx. 5 sqm
Effective thickness 90mm
Carcass/wood thickness
Knotted timber 90 x 130 mm. Also available in 44 and 60 mm timber thickness
The cottage with very modern character and stylish design, with open plan and cool loft solution with "cat attic" for practical storage and much more. The building area is about 38 sqm plus sleeping loft of almost 13 sqm and storage of 5 sqm. Nice glass railing in the loft and 3 round windows. Matilda is suitable for the small family and gives you a spacious accommodation with a cosy loft. A well-planned holiday home with lovely light and nice open living areas. Airy floor plan. A holiday home large enough for a private bathroom, open kitchen with living room.
Windows & doors
- Openable windows: 2 glass insulated windows. See Option 3-glass, glazing bars etc.
- 1 sliding section 2500 x 2000 mm (W x H)
- 3 round windows (fixed) 600 mm diameter
- 3 windows 760 x 1000 mm, 2 windows 2200 x 480 mm (fixed)
- 2 windows 760 x 480 mm (overhung)
- Entrance door (with/without glass): 900 x 2000 mm, incl. lock, lock, overhanging. 760 x 480 mm (overhung)
- Entry door (with/without glass, U-value 1.1): 900 x 2000 mm, incl. lock, handle, keys, insulating glass with glazing bars
- 1 inner door 900 x 2000 mm incl. lock and handle
- Staircase to loft: 1 included
- Glass railing included to loft
- Not included: Roof covering, insulation, screws and nails.
Floor plan
Building area: 38 sqm, Living area: approx. 50 sqm, 38+12 sqm (loft) + "cat attic" / storage approx. 5 sqm
Addons
Option Front door
Extra Timber Yard
Usually, you add one or more extra layers of timber if you intend to insulate your cottage, for example the internal roof, in which case a slightly higher roof height may be appropriate. But it is just as possible to insulate the roof from the outside from above, either way, depending on whether you want visible ridges in the inner roof or panelling.
Window bars
Specification
| Weight | Width | Height | Length | Roof pitch | Roof bearing capacity | mute | Floor | Tak | House type | Material (wood) | Building area |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7100 kg | approx. 5.8 m | about 5 m | 7,5 m | 21/22 degrees (pitched roof) | about 280 kg/sqm | Planed and knotted wall profiles 60 x 130 or 90 x 130 mm | 28 mm finely planed on floor joists 60 x 180 mm | 19 mm x 100 mm finely planed raw fibreboard on roof ridges 60 x 180 mm (Optional 60x200 mm) | knotted timber 1.5-plane, optional timber thickness 60 or 90 mm (walls) | latewood Nordic spruce, untreated and unpainted wood | about 38 square metres |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| N/A | N/A | N/A | N/A | 7100kg |
Documents
| Product Sheet | Open |
|---|
