Cottage JM Stugor & Fritid Jenny 40 m2
Effective thickness 90 mm
Carcass/wood thickness
Knotted timber 90 x 130 mm. Also available in 44 and 60 mm timber thickness

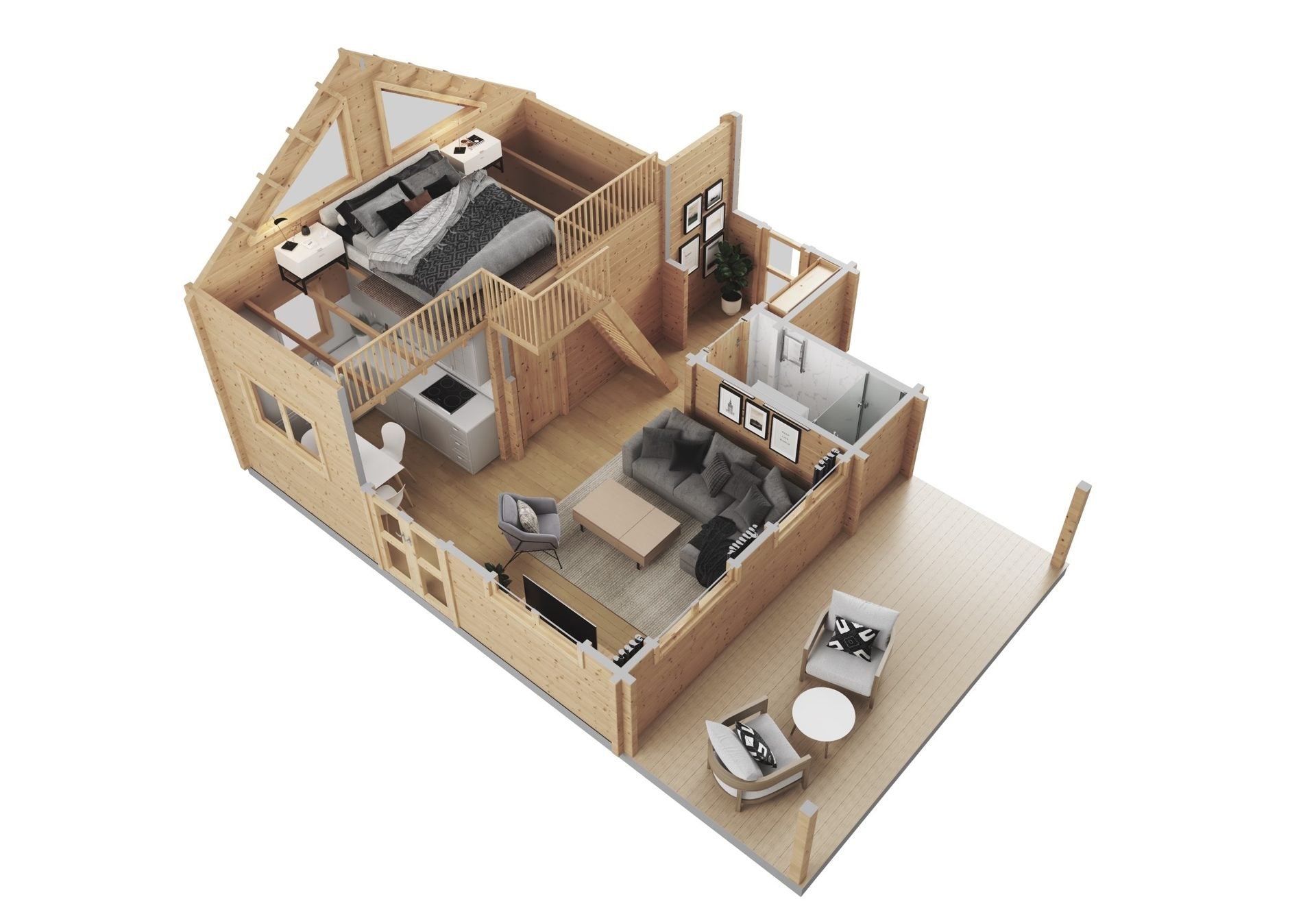

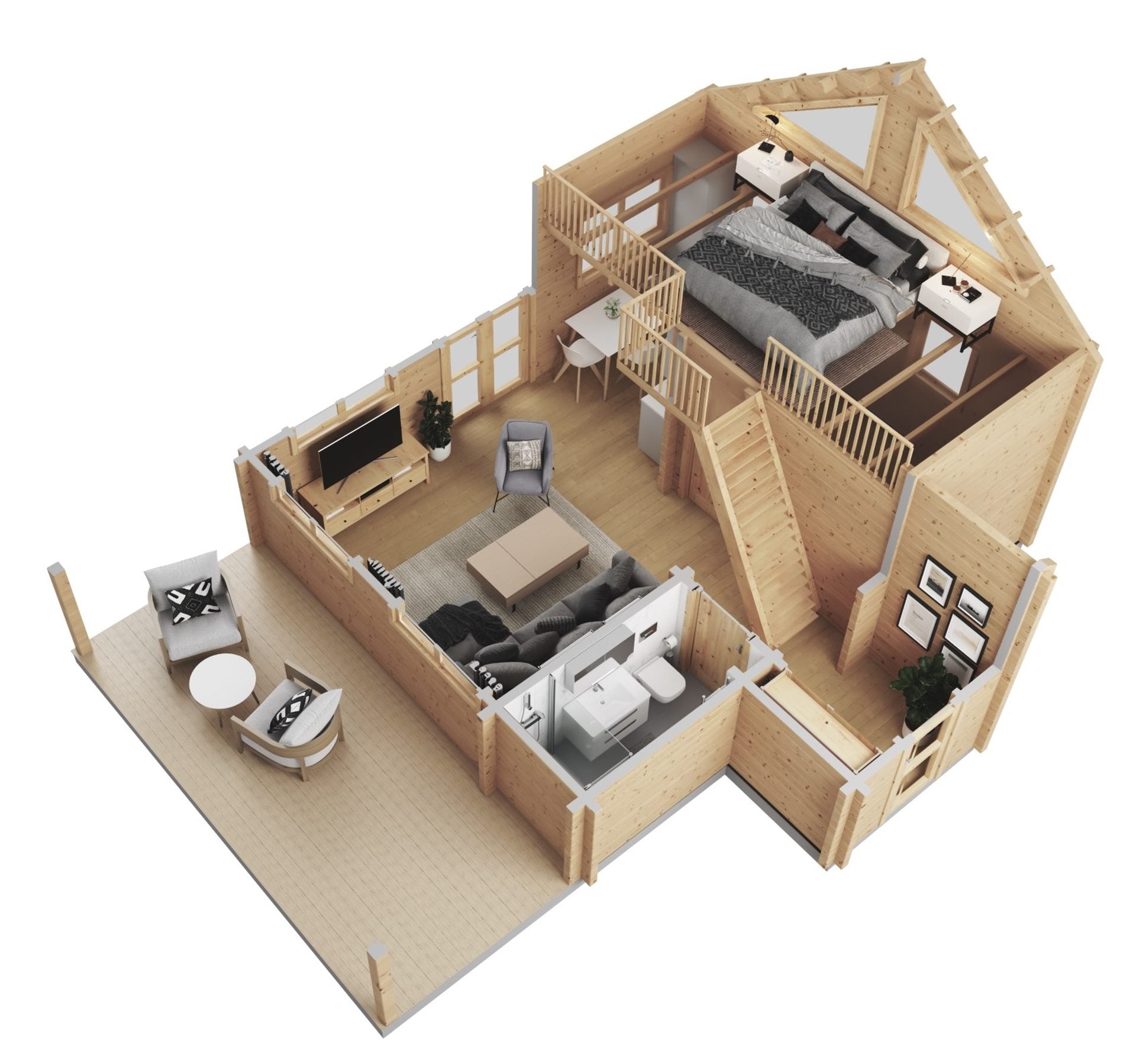

Luxurious holiday home with both character and design - works equally well as a permanent home for the small family with accommodation spread over 1.5 levels (a total of about 53 sqm). Roofed gable side possible patio deck and beautiful dormer. The cottage offers lovely and large light through all its windows, triangular windows, dormer and double patio doors in full glass. Bright and spacious rooms create the best cosiness. Jenny is delivered as a kit that handy people can put together, all parts are numbered and pre-cut - perfect "lego" for all do-it-yourselfers!
Windows & doors
- Openable windows: 2-glazed insulated glass windows (depending on choice), lining included on the outside, U-value 1.1 or 2.6.
- Windows & doors (2-glazed ISO): 4 pcs. double windows 1400 x 1000 mm, 2 pcs. windows 1000 x 760 mm and 3 pcs. 600 x 600 mm (dormer/loft window 2x + WC 1x), 2 triangular windows (not openable). Entrance door (window door): 1000 x 2000 mm and 1 double door (full glass/aluminium door) 1400 x 2000 mm
- Interior doors: 1 pc. 900 x 2000 mm and 1 x 800 x 1900 mm, incl. lock and handle.
- Not included: Roof cladding, insulation, glazing bars, internal lining, screws and nails.
Effective thickness 90 mm
Carcass/wood thickness
Knotted timber 90 x 130 mm. Also available in 44 and 60 mm timber thickness
Luxurious holiday home with both character and design - works equally well as a permanent home for the small family with accommodation spread over 1.5 levels (a total of about 53 sqm). Roofed gable side possible patio deck and beautiful dormer. The cottage offers lovely and large light through all its windows, triangular windows, dormer and double patio doors in full glass. Bright and spacious rooms create the best cosiness. Jenny is delivered as a kit that handy people can put together, all parts are numbered and pre-cut - perfect "lego" for all do-it-yourselfers!
Windows & doors
- Openable windows: 2-glazed insulated glass windows (depending on choice), lining included on the outside, U-value 1.1 or 2.6.
- Windows & doors (2-glazed ISO): 4 pcs. double windows 1400 x 1000 mm, 2 pcs. windows 1000 x 760 mm and 3 pcs. 600 x 600 mm (dormer/loft window 2x + WC 1x), 2 triangular windows (not openable). Entrance door (window door): 1000 x 2000 mm and 1 double door (full glass/aluminium door) 1400 x 2000 mm
- Interior doors: 1 pc. 900 x 2000 mm and 1 x 800 x 1900 mm, incl. lock and handle.
- Not included: Roof cladding, insulation, glazing bars, internal lining, screws and nails.
Addons
Option Front door

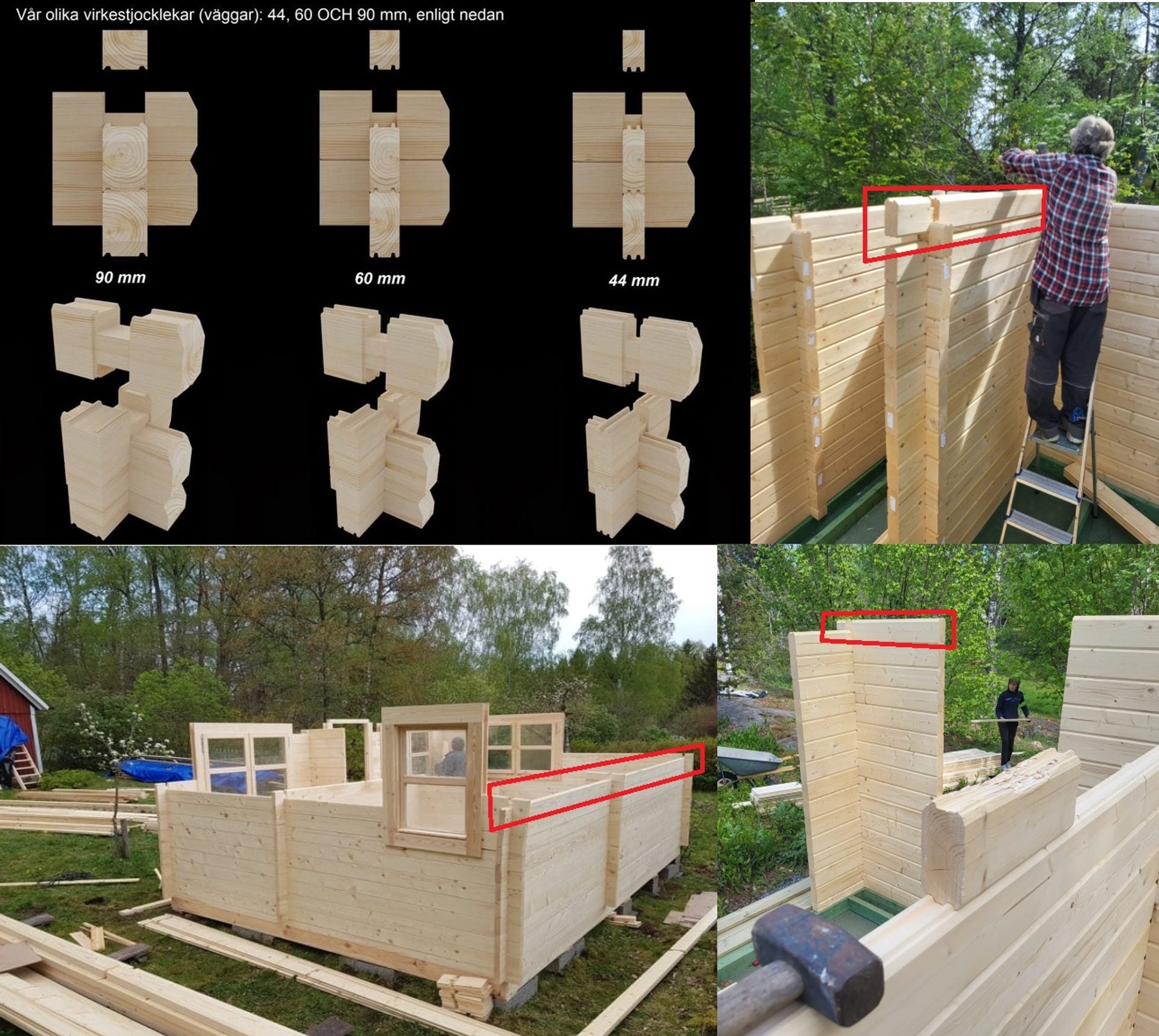

Extra Timber Yard
Usually, you add one or more extra layers of timber if you intend to insulate your cottage, for example the internal roof, in which case a slightly higher roof height may be appropriate. But it is just as possible to insulate the roof from the outside from above, either way, depending on whether you want visible ridges in the inner roof or panelling.
Window bars
Specification
| Weight | Width | Height | Length | Roof pitch | Roof bearing capacity | mute | Floor | Tak | House type | Material (wood) | Building area | Takyta | Boyta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

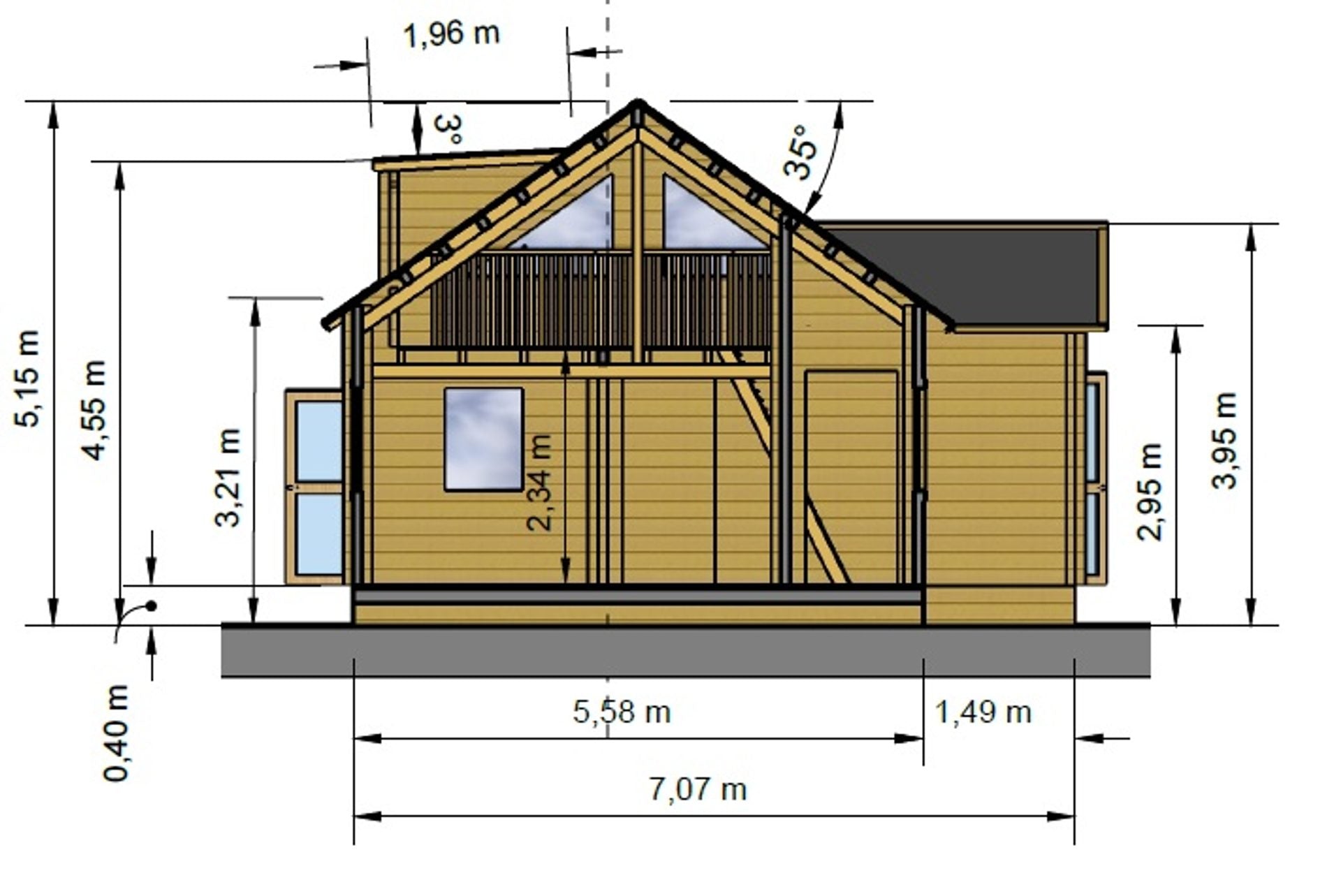

| 7400 kg | 5,6 m | 5,15 m | 6,7 m | 35 degrees (house body) and dormer 3 degrees | about 250 kg/sqm | Planed and knotted wall profiles 60 x 130 or 90 x 130 mm | 28 mm finely planed on floor joists 60 x 140/160/180 mm | 19 mm x 100 mm finely planed raw fibreboard on roof ridges 60 x 200 or 280 mm | knottimbered 4 rooms incl. loft, 60 or 90 mm (walls) | latewood Nordic spruce, untreated and unpainted wood | about 41 square metres | approx. 116 sqm incl. roofed gable side | approx. 53 sqm (approx. 40+13 sqm attic) |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| N/A | N/A | N/A | N/A | 7400kg |
Documents
| Technical Drawing | Open |
|---|
