Cottage JM Stugor & Fritid Jim 73 m2
Effective thickness 60 mm
Carcass/wood thickness
Knotted timber 60 x 130 mm. Also available in 44 and 90 mm timber thickness
Beautiful, stately and classically timbered holiday home of a total of about 73 sqm (40 sqm ground floor and 33 sqm loft). A modified and luxurious version of the best-selling holiday home Hannel-Marie, also called Sverigestugan, gives you a spacious accommodation with a large loft with separate bedroom. Double doors/aluminium doors and triangular windows give a lovely feeling of light and luxury.
Windows & doors
- Openable windows: 2-glazed insulating glass windows (depending on choice). U-value 2.6. Optional glazing bars, 3-glass U-value 1.1
- 3 pcs. Window 980 x 740 mm, 1 window 980 x 1980 mm and 2 triangular windows. Triangular windows
- 2 pcs Double door/aluminium door (full glass): 1780 x 1980 mm, , insulated glass
- Interior door (with/without glass): 900 x 2000 mm
- Interior doors: 1 pc. 900 x 2000 mm and 1 loft door/bedroom: 880 x 1540 mm
- Staircase ladder and railing to the loft: included
- Not included: Roof cladding, insulation, internal lining, glazing bars, screws and nails

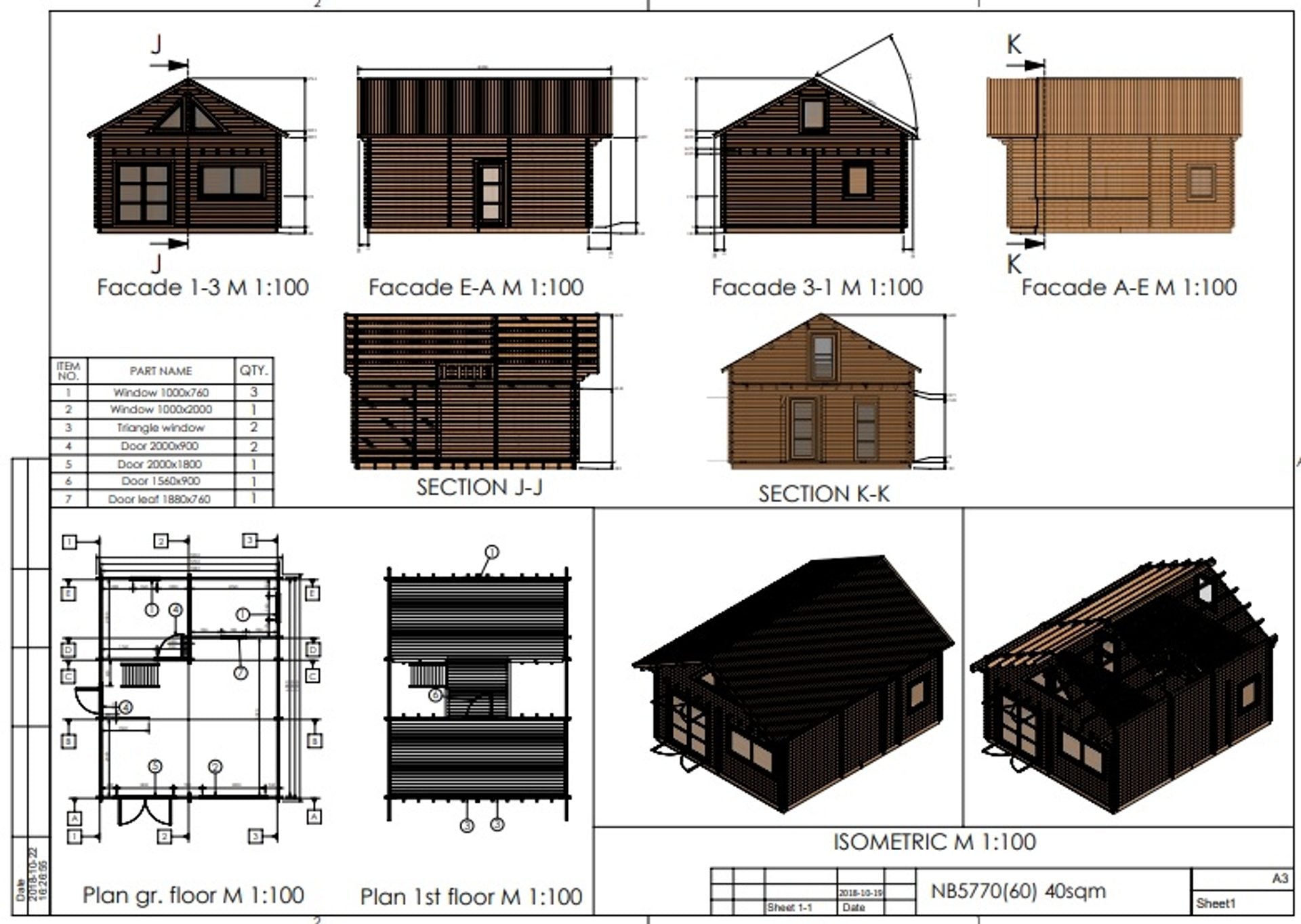

Floor plan
Building area: 39.9 sqm, Living area: approx. 73 sqm, approx. 40+33 sqm (loft), Large cottage: 18 sqm, Kitchen/living room: 4.5 sqm, Bedroom: approx. 6.9 sqm, Upper floor/loft: approx. 33 sqm in total of which 1 separate bedroom: approx. 13.7 sqm, (the free maximum height of the loft in the middle is approx. 2.2 m), Ceiling heights: Large cottage approx. 2.35 m
Effective thickness 60 mm
Carcass/wood thickness
Knotted timber 60 x 130 mm. Also available in 44 and 90 mm timber thickness
Beautiful, stately and classically timbered holiday home of a total of about 73 sqm (40 sqm ground floor and 33 sqm loft). A modified and luxurious version of the best-selling holiday home Hannel-Marie, also called Sverigestugan, gives you a spacious accommodation with a large loft with separate bedroom. Double doors/aluminium doors and triangular windows give a lovely feeling of light and luxury.
Windows & doors
- Openable windows: 2-glazed insulating glass windows (depending on choice). U-value 2.6. Optional glazing bars, 3-glass U-value 1.1
- 3 pcs. Window 980 x 740 mm, 1 window 980 x 1980 mm and 2 triangular windows. Triangular windows
- 2 pcs Double door/aluminium door (full glass): 1780 x 1980 mm, , insulated glass
- Interior door (with/without glass): 900 x 2000 mm
- Interior doors: 1 pc. 900 x 2000 mm and 1 loft door/bedroom: 880 x 1540 mm
- Staircase ladder and railing to the loft: included
- Not included: Roof cladding, insulation, internal lining, glazing bars, screws and nails
Floor plan
Building area: 39.9 sqm, Living area: approx. 73 sqm, approx. 40+33 sqm (loft), Large cottage: 18 sqm, Kitchen/living room: 4.5 sqm, Bedroom: approx. 6.9 sqm, Upper floor/loft: approx. 33 sqm in total of which 1 separate bedroom: approx. 13.7 sqm, (the free maximum height of the loft in the middle is approx. 2.2 m), Ceiling heights: Large cottage approx. 2.35 m
Addons
Option Front door
Window bars
Specification
| Weight | Width | Height | Length | Roof pitch | Roof bearing capacity | mute | Floor | Tak | House type | Material (wood) | Building area | Takyta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6200 kg | 5,7 m | 4,68 m | 7,0 m | 29 degrees (optional) | 250 kg/sqm | Planed and knotted wall profiles 60 x 130 or 90 x 130 mm | 28 mm finely planed on floor joists 60 x 140/160/180/200 mm | 19 mm x 100 mm planed raw board on roof ridges 60 x 140/160/180/200 mm | knotted timber 1.5-plane, optional timber thickness 60 or 90 mm (walls) | latewood Nordic spruce, untreated and unpainted wood | 40 square metres | about 44 square metres |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| N/A | N/A | N/A | N/A | 6200kg |
