Cottage JM Stugor & Fritid Saga
20 m2, Effective thickness 60 mm
Carcass/wood thickness
Knotted timber 60 x 130 mm. Also available in 44 and 90 mm timber thickness

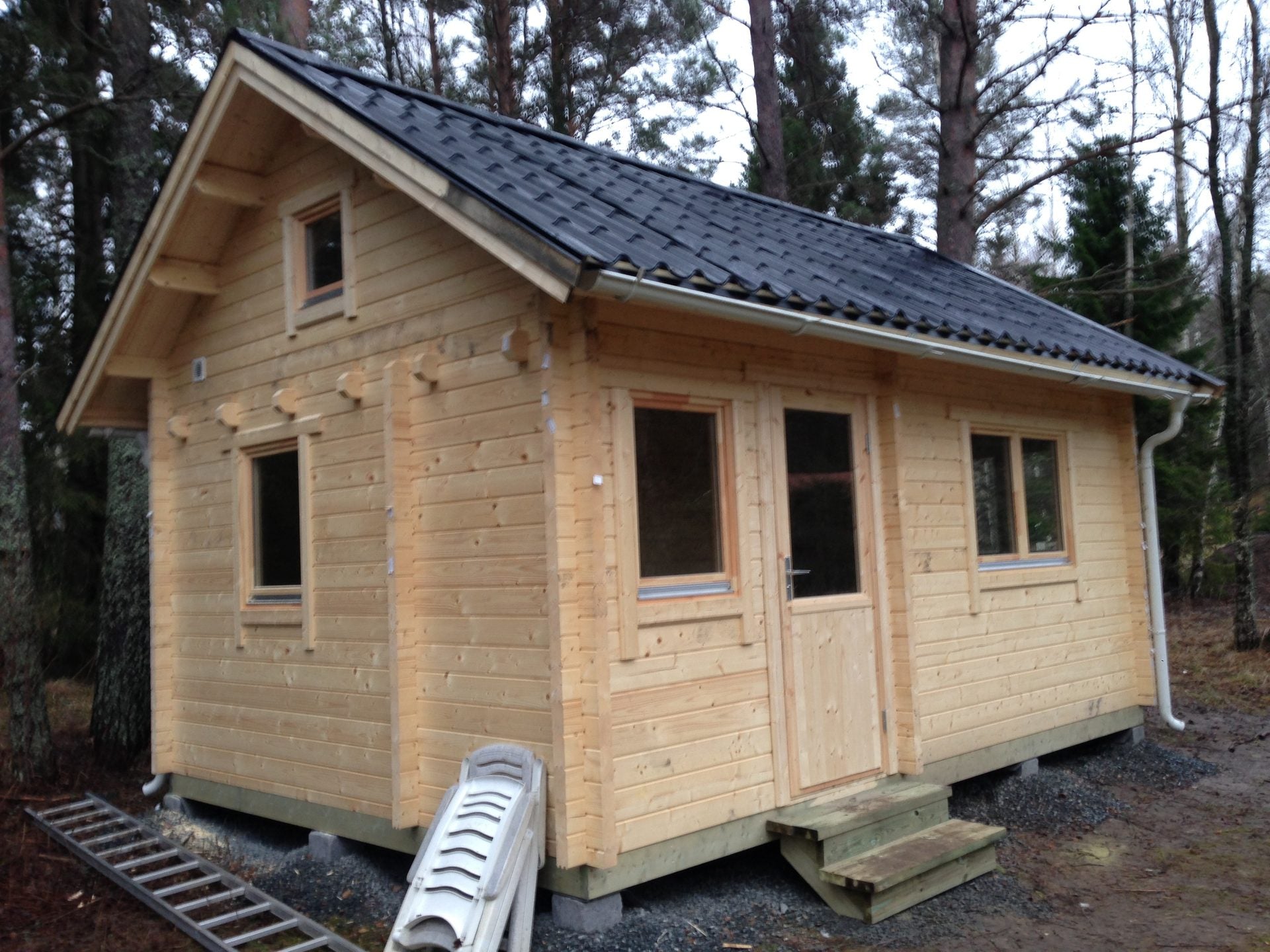

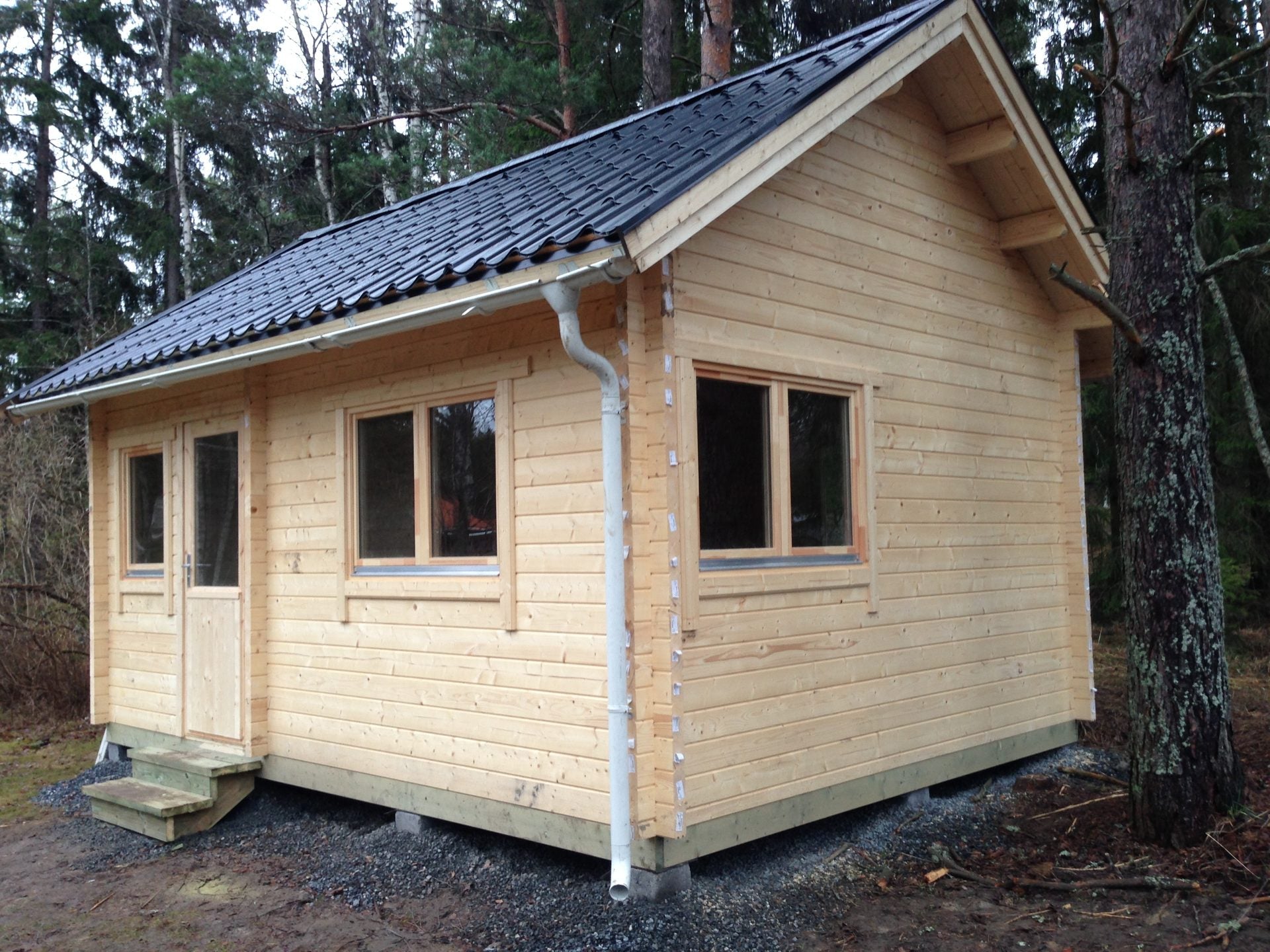

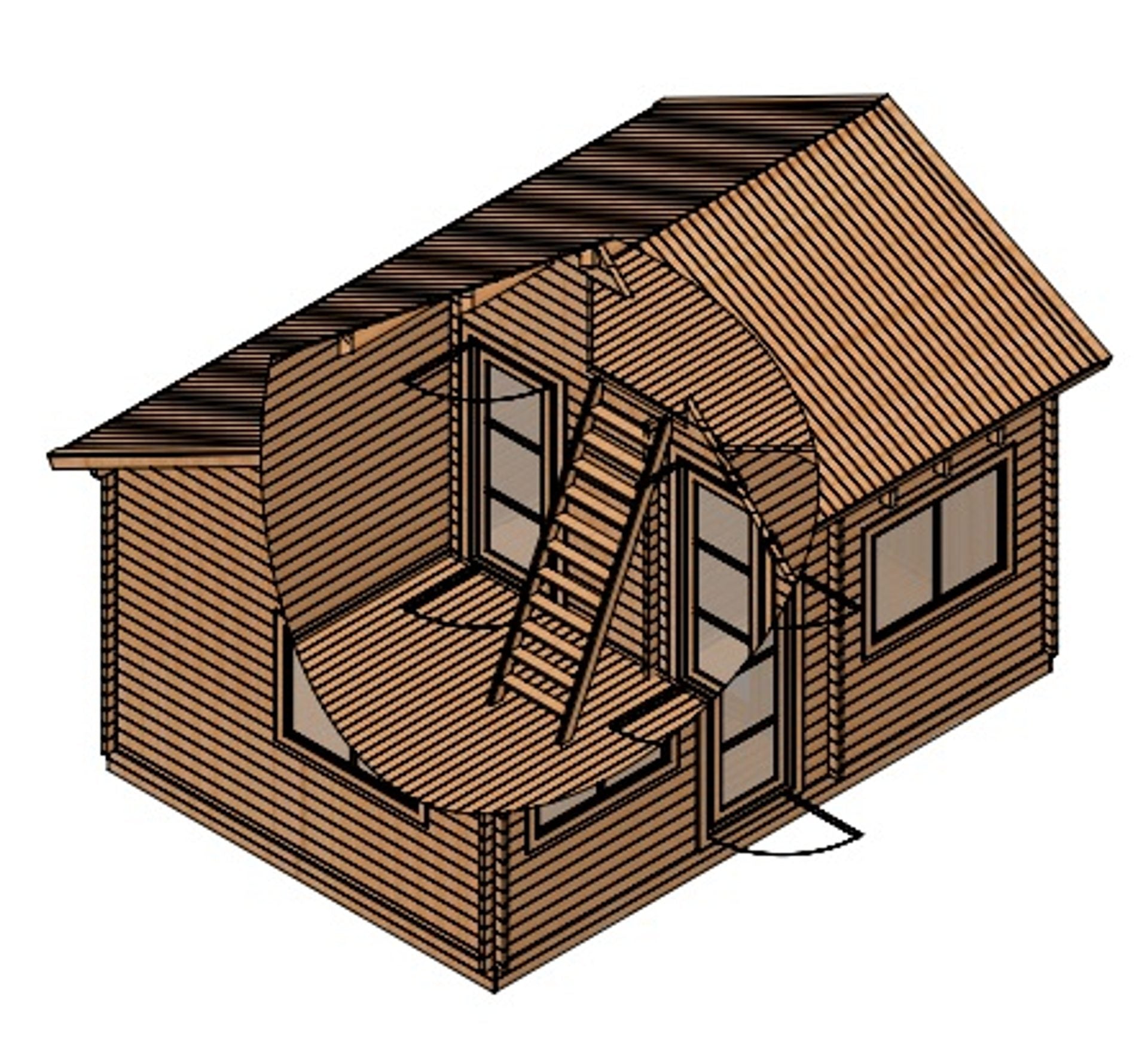

The holiday home "Saga" has a smart floor plan with a practical and cosy loft. Saga is available in 20, 25 or 30 square metres, with an associated loft of 8, 10 or 12 square metres. Saga gives you a nice cottage with three rooms of different sizes that you can, for example, furnish as a living room / large cottage + bedroom + kitchen / pantry or kitchen / lounge + office + WC / bath / shower. High quality and stable construction, rough roof ridges and finely planed 28 mm wooden floor. Saga is suitable as a summer house, guest cottage or holiday home all year round and can easily be additionally insulated, in the floor, roof and / or walls outside / inside.
Windows & doors
- Openable windows: 2-glazed insulating glass windows (depending on choice), U-value 2.6
- 2 double windows 1400 x 1000 mm, 3 windows 1000 x 760 mm
- Enter door (with/without glass, U-value 1.1): 900/1000 x 2000 mm
- Staircase to loft: 1 included
- Not included: Roofing, glazing bars, insulation, screws and nails
20 m2, Effective thickness 60 mm
Carcass/wood thickness
Knotted timber 60 x 130 mm. Also available in 44 and 90 mm timber thickness
The holiday home "Saga" has a smart floor plan with a practical and cosy loft. Saga is available in 20, 25 or 30 square metres, with an associated loft of 8, 10 or 12 square metres. Saga gives you a nice cottage with three rooms of different sizes that you can, for example, furnish as a living room / large cottage + bedroom + kitchen / pantry or kitchen / lounge + office + WC / bath / shower. High quality and stable construction, rough roof ridges and finely planed 28 mm wooden floor. Saga is suitable as a summer house, guest cottage or holiday home all year round and can easily be additionally insulated, in the floor, roof and / or walls outside / inside.
Windows & doors
- Openable windows: 2-glazed insulating glass windows (depending on choice), U-value 2.6
- 2 double windows 1400 x 1000 mm, 3 windows 1000 x 760 mm
- Enter door (with/without glass, U-value 1.1): 900/1000 x 2000 mm
- Staircase to loft: 1 included
- Not included: Roofing, glazing bars, insulation, screws and nails
Addons
Option Front door
Extra Timber Yard
Usually, you add one or more extra layers of timber if you intend to insulate your cottage, for example the internal roof, in which case a slightly higher roof height may be appropriate. But it is just as possible to insulate the roof from the outside from above, either way, depending on whether you want visible ridges in the inner roof or panelling.
Window bars
Specification
| Weight | Width | Height | Length | Roof pitch | Roof bearing capacity | mute | Floor | Tak | House type | Material (wood) | Building area | Takyta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2800 kg | 4 m | 3,7 m | 5 m | 30 degrees (optional) | 220 kg/sq m | Planed and knotted wall profiles, 60 x 130 or 90 x 130 mm | 28 mm finely planed on floor joists 60 x 140/160/180 mm | 19 mm x 100 mm planed raw fibreboard on roof ridges 60 x 140/160/180 mm | knot-timbered loft cabin, any timber thickness 44, 60 or 90 mm (walls) | latewood Nordic spruce, untreated and unpainted wood | 20 square metres | about 37.5 square metres |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| N/A | N/A | N/A | N/A | 2800kg |
