Cottage JM Stugor & Fritid Building 70 m2
Effective thickness 60 mm
Carcass/wood thickness
Knotted timber 60 x 130 mm, also available in 90 mm timber thickness
Bauge 70 sqm is a real "heavyweight" among the 1-storey cottages - many rooms and surfaces - our largest cottage in terms of building area. Bauge is suitable for the small family and gives you a spacious accommodation.
Windows & doors
- Openable windows: 2-glazed insulating glass windows (depending on choice). U-value 2.6. Optional: mullion, 3-glazed, U-value 1.1
- 4 windows with mullion 1000 x 760 mm. 2 pcs. Entrance door (with/without glass): 900 x 2000 mm, incl. lock, handle, keys, insulating glass. 5 pcs. Interior doors: 900 x 2000 mm incl. lock and handle. Not included: Roof cladding, insulation, screws and nails
Floor plan
Living area: approx. 70 sq.m., living room: approx. 37 sq.m., kitchen/bedroom: approx. 10 sq.m., WC: approx. 3.2 sq.m., bedroom 1: approx. 6.2 sq.m., bedroom 2: approx. 6.2 sq.m., storage room or WC: approx. 5 sq.m. Ceiling heights: Large living room approx. 3.4 m. WC/Kitchen/bedroom approx. 2.3 m
Effective thickness 60 mm
Carcass/wood thickness
Knotted timber 60 x 130 mm, also available in 90 mm timber thickness
Bauge 70 sqm is a real "heavyweight" among the 1-storey cottages - many rooms and surfaces - our largest cottage in terms of building area. Bauge is suitable for the small family and gives you a spacious accommodation.
Windows & doors
- Openable windows: 2-glazed insulating glass windows (depending on choice). U-value 2.6. Optional: mullion, 3-glazed, U-value 1.1
- 4 windows with mullion 1000 x 760 mm. 2 pcs. Entrance door (with/without glass): 900 x 2000 mm, incl. lock, handle, keys, insulating glass. 5 pcs. Interior doors: 900 x 2000 mm incl. lock and handle. Not included: Roof cladding, insulation, screws and nails
Floor plan
Living area: approx. 70 sq.m., living room: approx. 37 sq.m., kitchen/bedroom: approx. 10 sq.m., WC: approx. 3.2 sq.m., bedroom 1: approx. 6.2 sq.m., bedroom 2: approx. 6.2 sq.m., storage room or WC: approx. 5 sq.m. Ceiling heights: Large living room approx. 3.4 m. WC/Kitchen/bedroom approx. 2.3 m
Addons
Option Front door
Front door JM Stugor & Fritid White
Right-hanging, 900 x 2000 mm, 1 - Large window with glazing bars
Right-hanging, 900 x 2100 mm, 1 - Large window with glazing bars
Left-hanging, 1000 x 2100 mm, 1 - Large window with glazing bars
Right-hanging, 1000 x 2100 mm, 1 - Large window with glazing bars
Left-hanging, 900 x 2000 mm, 2 - Half-moon windows with glazing bars
Right-hanging, 900 x 2000 mm, 2 - Half-moon windows with glazing bars
Left-hanging, 900 x 2100 mm, 2 - Half-moon windows with glazing bars
Right-hanging, 900 x 2100 mm, 2 - Half-moon windows with glazing bars
Left-hanging, 1000 x 2100 mm, 2 - Half-moon windows with glazing bars
Right-hanging, 1000 x 2100 mm, 2 - Half-moon windows with glazing bars

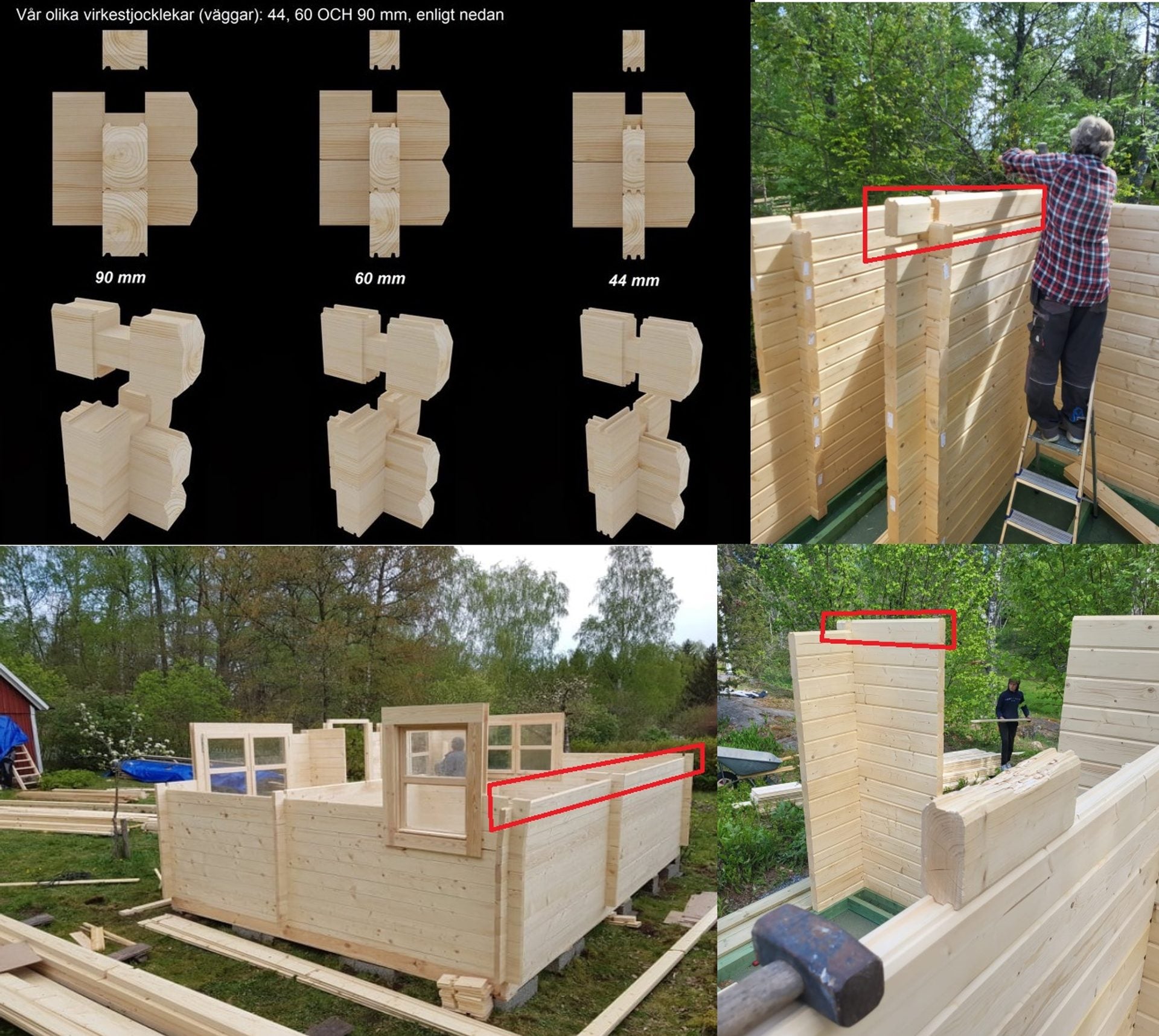

Extra Timber Yard
Usually, you add one or more extra layers of timber if you intend to insulate your cottage, for example the internal roof, in which case a slightly higher roof height may be appropriate. But it is just as possible to insulate the roof from the outside from above, either way, depending on whether you want visible ridges in the inner roof or panelling.
Extra Timber Yard JM Stugor & Fritid building

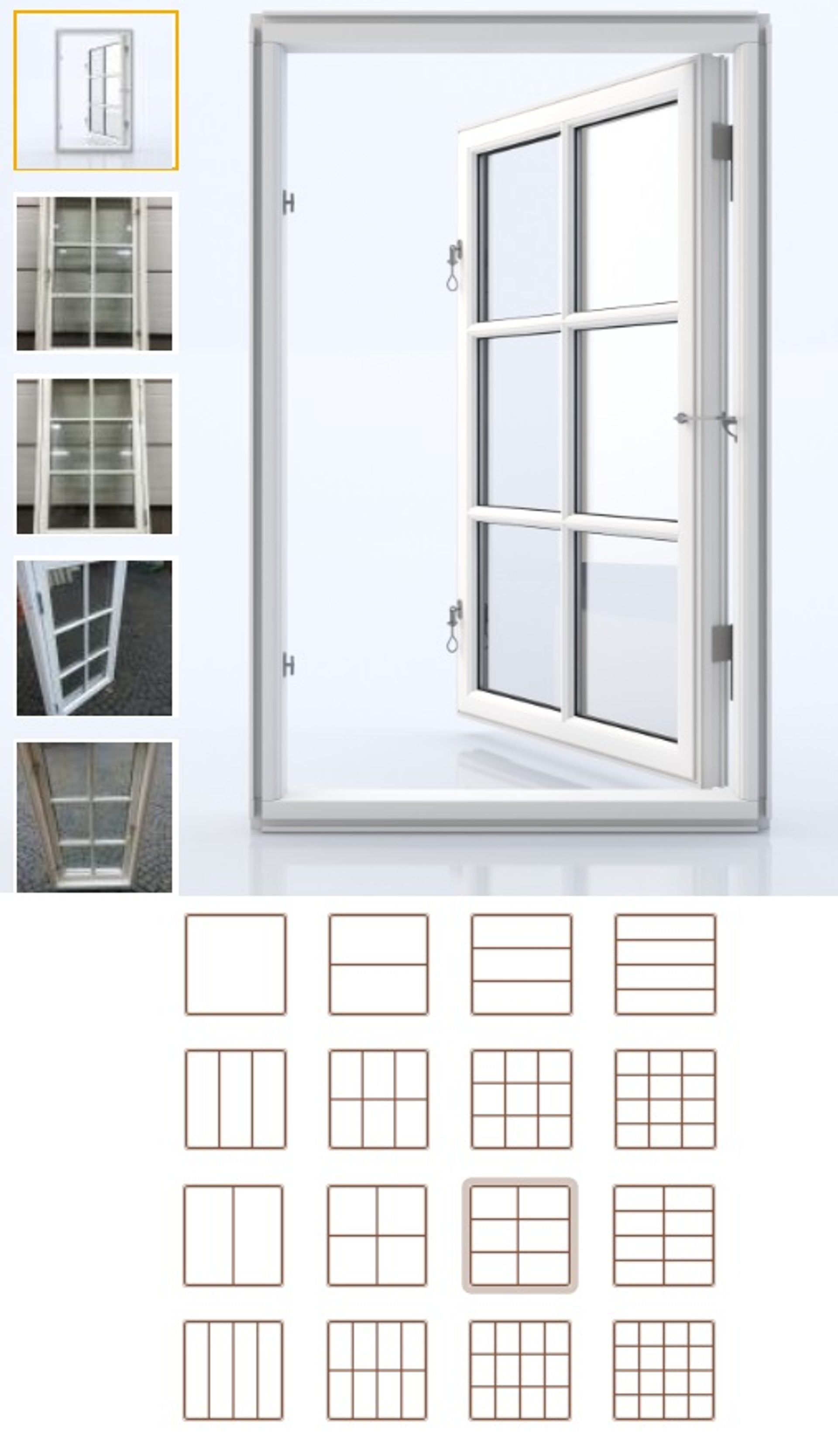

Window bars
Fönsterspröjs JM Stugor & Fritid
Specification
| Weight | Width | Height | Length | Roof pitch | Roof bearing capacity | mute | Floor | Tak | House type | Material (wood) | Building area | Takyta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7900 kg | 6,34 m | 3,5 m | 11,09 m | 18 degrees (optional) | about 250 kg/sqm | Planed and knotted wall profiles 60 x 130 mm or 90 x 130 mm | 28 mm finely planed on floor joists 60 x 140/160/180 mm | 19 mm x 100 mm finely planed raw fibreboard on roof ridges 60 x 140/160/180 mm | knotted timber 1-plane, optional timber thickness 60 or 90 mm (walls) | latewood Nordic spruce, untreated and unpainted wood | 70.3 square metres | about 94 square metres |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| N/A | N/A | N/A | N/A | 7900kg |
Documents
| Technical Drawing (SV) | Open |
|---|
