Cottage JM Stugor & Fritid Amber 62 m2
Effective thickness 60 mm
Carcass/wood thickness
Knotted timber 60 x 130 mm, also available in 90 mm timber thickness
Beautiful, practical and classic log cabin of a total of about 62 sqm living space, perfectly adapted to an environment of wilderness and leisure life. The fine timber frame gives character to the cottage. Smart, bright and open floor plan with about 46 sqm on the ground floor and a cosy loft of about 16 sqm, which provides plenty of space for storage, beds and guests. A holiday home to enjoy and large enough for a small bathroom, open kitchen / pantry and separate bedroom. A spring, summer and autumn house, guest cottage or year-round residence depending on the choice of timber thickness. Windows and front door are insulated and keep the heat in. You will be pleasantly surprised by this cottage, so much value and house for money. A good investment.
- 49 sqm of building space
- 46 sqm of ground floor living space and 16 sqm of loft
- Floor and ceiling boards are finely planed and tongued and grooved for good dimensional stability
- The timber is of durable late-grown Nordic spruce
- 2-glazing/ISO as standard in windows and doors
Tak
- 19x100 mm plywood, finely planed and well-fitted for good stability
- Roof boxes pre-cut in 60 x 160 mm
- Wind boards raw plan included
- Eaves boards included
Windows
- Lining inside and outside (untreated double glazing). Glazing bars available as an option.
- Genuine double glazing/ISO (U-value 2.6)
- Push-buttons/knobs/handles and fittings
- Opening in 2 directions (hinged & side-hung)
Doors
- Exterior lining
- Enter door with window
- Interior wooden doors+lining
- Handle+cylinder lock+keys
- Adjustable door hinges
Floor
- Flooring beams 60 x 140 mm, pre-cut
- Fine planed wood flooring in 28 mm thickness
- Floor mouldings
- Flooring, fine planed wood flooring in 28 mm
Windows & doors
- Windows & doors (included)
- Opening windows: double glazed insulating glass windows. Lining inside and outside (untreated double glazing). 2 double windows 1400 x 1000 mm, 1 window 1000 x 760 mm, 2 windows 600 x 600 mm.Entrance door (window door): 900 x 2000 mm, incl. lock, handle, keys, insulated glass, 1 double door/glass: 1400 x 2000 mm, Interior doors: 2 pcs. 900 x 2000 mm incl. lock and handle.
- Staircase ladder to the loft: 1 included Not included: Roofing, insulation, screws and nails.

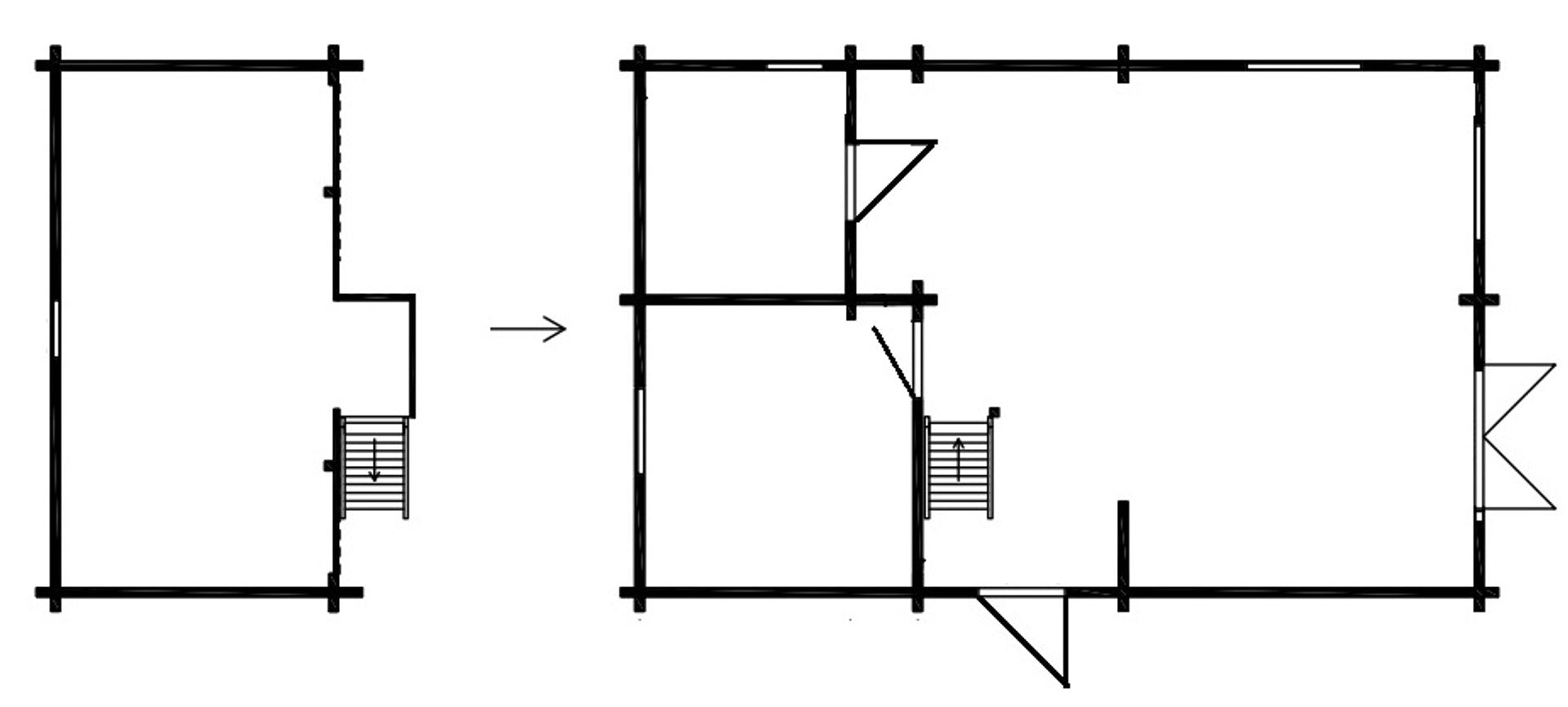

Floor plan
Building area: 49 sqm, Living area: approx. 62 sqm, 46+16 sqm (loft), Living room: approx. 32 sqm, Kitchen/living room: approx. 8.5 sqm, WC: approx. 5 sqm, Bedroom: approx. 8.5 sqm, Sleeping loft: approx. 16 sqm (the maximum free height of the loft in the centre is approx. 2 m), Ceiling heights: Living room approx. 4.3 m. WC/Kitchen/bedroom approx. 2.1 m.
- 5 years warranty
- Spun roof & floor boards
- Heavily dimensioned roof ridges
- Heavy floor joists
- Fine planed floor and roof boards
- Very good fit on all parts
- Easy and fast assembly
- Marked, numbered and pre-cut parts
- Rubber seals & silicon (windows & doors)
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Nuttimbered walls with double hooks/particle board
- Strong glulam cross beams
- Glued timber door frame
- Parts supplied unfinished
- Pivot & side hung windows
- Trims & fittings
- Handles+cylinder locks+keys included for internal doors. Optional for exterior doors
- Window & door liners (for double glazed unpainted). Optional glazing bars available.
- Adjustable door hinges
Effective thickness 60 mm
Carcass/wood thickness
Knotted timber 60 x 130 mm, also available in 90 mm timber thickness
Beautiful, practical and classic log cabin of a total of about 62 sqm living space, perfectly adapted to an environment of wilderness and leisure life. The fine timber frame gives character to the cottage. Smart, bright and open floor plan with about 46 sqm on the ground floor and a cosy loft of about 16 sqm, which provides plenty of space for storage, beds and guests. A holiday home to enjoy and large enough for a small bathroom, open kitchen / pantry and separate bedroom. A spring, summer and autumn house, guest cottage or year-round residence depending on the choice of timber thickness. Windows and front door are insulated and keep the heat in. You will be pleasantly surprised by this cottage, so much value and house for money. A good investment.
- 49 sqm of building space
- 46 sqm of ground floor living space and 16 sqm of loft
- Floor and ceiling boards are finely planed and tongued and grooved for good dimensional stability
- The timber is of durable late-grown Nordic spruce
- 2-glazing/ISO as standard in windows and doors
Tak
- 19x100 mm plywood, finely planed and well-fitted for good stability
- Roof boxes pre-cut in 60 x 160 mm
- Wind boards raw plan included
- Eaves boards included
Windows
- Lining inside and outside (untreated double glazing). Glazing bars available as an option.
- Genuine double glazing/ISO (U-value 2.6)
- Push-buttons/knobs/handles and fittings
- Opening in 2 directions (hinged & side-hung)
Doors
- Exterior lining
- Enter door with window
- Interior wooden doors+lining
- Handle+cylinder lock+keys
- Adjustable door hinges
Floor
- Flooring beams 60 x 140 mm, pre-cut
- Fine planed wood flooring in 28 mm thickness
- Floor mouldings
- Flooring, fine planed wood flooring in 28 mm
Windows & doors
- Windows & doors (included)
- Opening windows: double glazed insulating glass windows. Lining inside and outside (untreated double glazing). 2 double windows 1400 x 1000 mm, 1 window 1000 x 760 mm, 2 windows 600 x 600 mm.Entrance door (window door): 900 x 2000 mm, incl. lock, handle, keys, insulated glass, 1 double door/glass: 1400 x 2000 mm, Interior doors: 2 pcs. 900 x 2000 mm incl. lock and handle.
- Staircase ladder to the loft: 1 included Not included: Roofing, insulation, screws and nails.
Floor plan
Building area: 49 sqm, Living area: approx. 62 sqm, 46+16 sqm (loft), Living room: approx. 32 sqm, Kitchen/living room: approx. 8.5 sqm, WC: approx. 5 sqm, Bedroom: approx. 8.5 sqm, Sleeping loft: approx. 16 sqm (the maximum free height of the loft in the centre is approx. 2 m), Ceiling heights: Living room approx. 4.3 m. WC/Kitchen/bedroom approx. 2.1 m.
- 5 years warranty
- Spun roof & floor boards
- Heavily dimensioned roof ridges
- Heavy floor joists
- Fine planed floor and roof boards
- Very good fit on all parts
- Easy and fast assembly
- Marked, numbered and pre-cut parts
- Rubber seals & silicon (windows & doors)
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Nuttimbered walls with double hooks/particle board
- Strong glulam cross beams
- Glued timber door frame
- Parts supplied unfinished
- Pivot & side hung windows
- Trims & fittings
- Handles+cylinder locks+keys included for internal doors. Optional for exterior doors
- Window & door liners (for double glazed unpainted). Optional glazing bars available.
- Adjustable door hinges
Addons
Option Front door

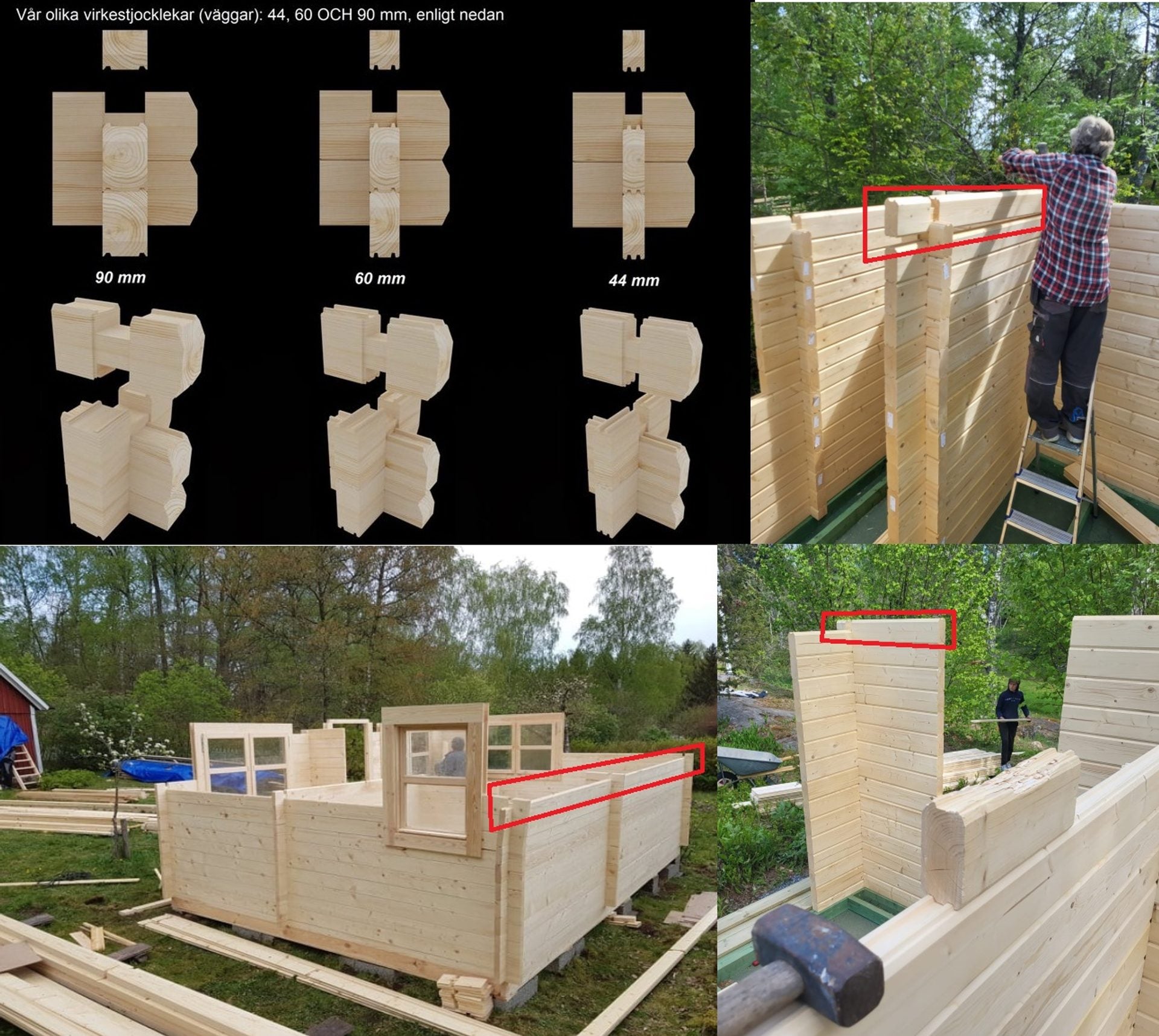

Extra Timber Yard
Usually, you add one or more extra layers of timber if you intend to insulate your cottage, for example the internal roof, in which case a slightly higher roof height may be appropriate. But it is just as possible to insulate the roof from the outside from above, either way, depending on whether you want visible ridges in the inner roof or panelling.
Mr Farstukvist
A classic front porch exudes a sense of welcome and warmth, and on rainy and snowy days, it also provides a cosy shelter. In the summer months, the porch is perfect for a coffee break, and in the winter it's the perfect place to fill with lanterns.
Window bars
Specification
| Weight | Width | Height | Length | Roof pitch | Roof bearing capacity | mute | Floor | Tak | Building area | Takyta | Material (wood).1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6300 kg | 5,6 m | 4,7 m | 8,8 m | 32 degrees (optional) | about 250 kg/sqm | Planed and knotted wall profiles 60 x 130 mm | 28 mm finely planed on floor joists 60 x 140 mm | 19 mm x 100 mm finely planed raw fibreboard on roof ridges 60 x 160/180 mm | 49.5 square metres | about 83 square metres | latewood Nordic spruce, untreated and unpainted wood |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| 1200mm | 900mm | 6000mm | N/A | N/A |
| 1200mm | 900mm | 6000mm | N/A | N/A |
| 1200mm | 900mm | 6000mm | N/A | 6300kg |
Documents
| Product Sheet (SV) | Open |
|---|
