Cottage JM Stugor & Fritid Lisa
25 m2, Effective thickness 90 mm
Carcass/wood thickness
Knotted timber 90 x 130 mm. Also available in 44 and 60 mm timber thickness
Lisa is a well-planned and luxurious holiday cottage in both 25 and 30 sqm versions, both with 3 rooms and a sleeping loft. The holiday home is like a traditional small house with very nice character, pitched roof, windows in all directions and a number of different options such as a practical attic. The cottage "Lisa" is the given model of the 21st century - is here to stay!
Knotted model with 3 rooms and sleeping loft and many windows for large and lovely light from all directions. The oblong living space provides discreet privacy for the sleeping area, the loft and a nicely framed entrance with a double door in full glass.

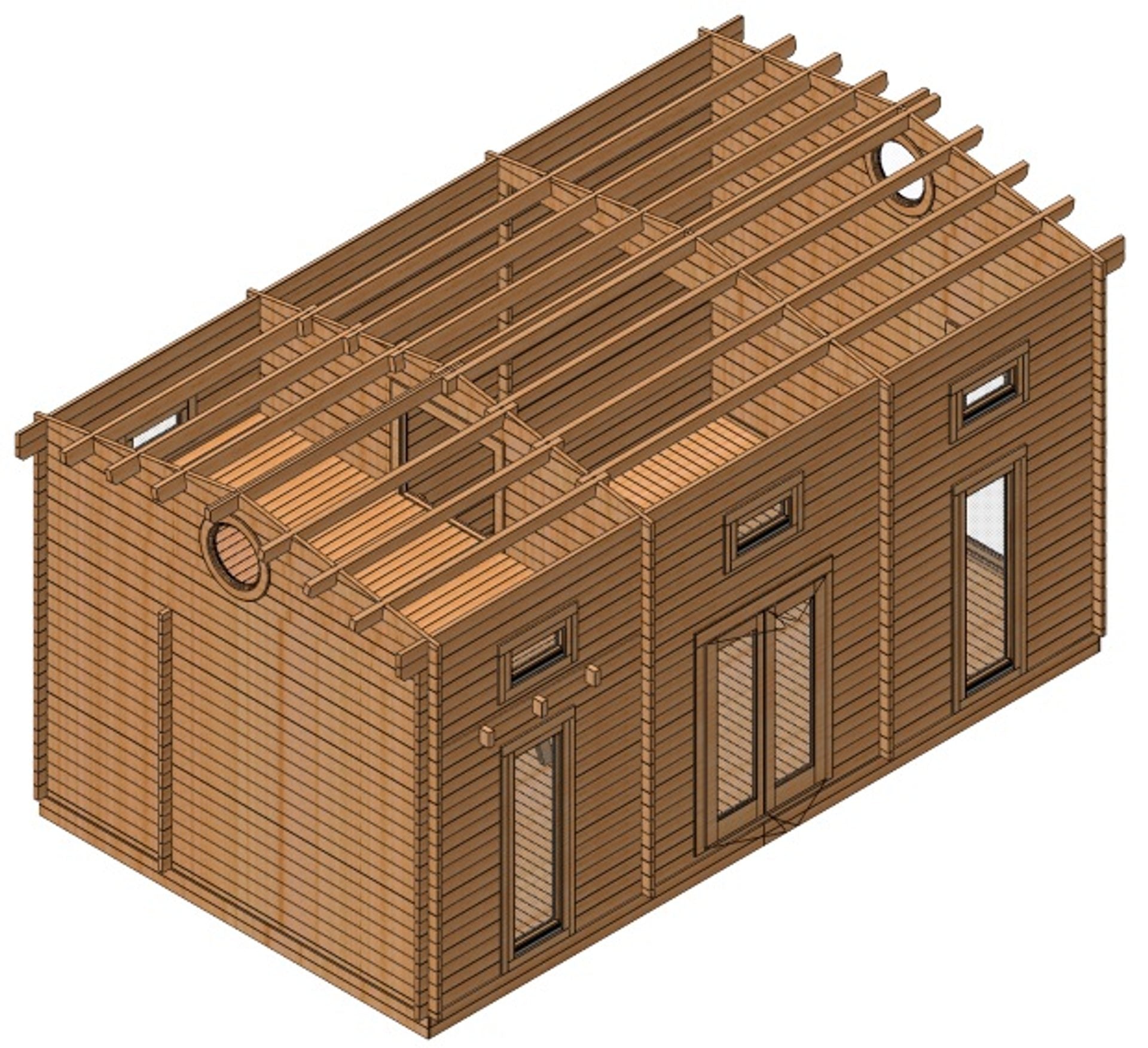

The cabin is available in 44, 60 or 90 mm timber thickness. The cabin is delivered as a complete kit where all the parts are pre-cut and numbered for quick and easy assembly - which is easily done by two people!
Windows & doors
- Openable windows: double-glazed insulated windows (depending on choice), U-value 2,6
- 1 pcs. Double patio/entrance door (full glass): 1380x1980 mm
- 2 pcs. round windows (one fixed and one opening, optional placement) D600 mm
- 3 pcs. 680x1980 mm
- 4 pcs. 760x380/480 mm
- 1 inner door 880x1980 mm (full wood, unpainted)
- Not included: Roof cladding, insulation, screws and nails
Floor plan
Building area: 25 sqm, Living area: approx. 24.8 sqm + sleeping loft approx. 9 sqm. Building area: 30 sqm, Living area: approx. 29.9 sqm + sleeping loft approx. 9 sqm
25 m2, Effective thickness 90 mm
Carcass/wood thickness
Knotted timber 90 x 130 mm. Also available in 44 and 60 mm timber thickness
Lisa is a well-planned and luxurious holiday cottage in both 25 and 30 sqm versions, both with 3 rooms and a sleeping loft. The holiday home is like a traditional small house with very nice character, pitched roof, windows in all directions and a number of different options such as a practical attic. The cottage "Lisa" is the given model of the 21st century - is here to stay!
Knotted model with 3 rooms and sleeping loft and many windows for large and lovely light from all directions. The oblong living space provides discreet privacy for the sleeping area, the loft and a nicely framed entrance with a double door in full glass.
The cabin is available in 44, 60 or 90 mm timber thickness. The cabin is delivered as a complete kit where all the parts are pre-cut and numbered for quick and easy assembly - which is easily done by two people!
Windows & doors
- Openable windows: double-glazed insulated windows (depending on choice), U-value 2,6
- 1 pcs. Double patio/entrance door (full glass): 1380x1980 mm
- 2 pcs. round windows (one fixed and one opening, optional placement) D600 mm
- 3 pcs. 680x1980 mm
- 4 pcs. 760x380/480 mm
- 1 inner door 880x1980 mm (full wood, unpainted)
- Not included: Roof cladding, insulation, screws and nails
Floor plan
Building area: 25 sqm, Living area: approx. 24.8 sqm + sleeping loft approx. 9 sqm. Building area: 30 sqm, Living area: approx. 29.9 sqm + sleeping loft approx. 9 sqm
Addons
Option Front door
Extra Timber Yard
Usually, you add one or more extra layers of timber if you intend to insulate your cottage, for example the internal roof, in which case a slightly higher roof height may be appropriate. But it is just as possible to insulate the roof from the outside from above, either way, depending on whether you want visible ridges in the inner roof or panelling.
Window bars
Specification
| Weight | Width | Height | Length | Roof pitch | Roof bearing capacity | mute | Floor | Tak | House type | Building area | Material (wood).1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4500 kg | approx. 3.6 m | approx. 3.8 m | approx. 6.8 m | 9/10 degrees (pitched roof) | 240 kg/sqm | Planed and knotted timber wall profiles | 28 mm finely planed on floor joists 60 x 140 mm. Available as "Option" 60x180/200 mm. | 19 mm x 100 mm planed raw fibreboard on roof ridges 60 x 140 mm | knot-timbered loft cabin, any timber thickness 44, 60 or 90 mm (walls) | 25 square metres | latewood Nordic spruce, untreated and unpainted wood |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| N/A | N/A | N/A | N/A | 4500kg |
Documents
| Technical Drawing (SV) | Open |
|---|
