Cottage JM Stugor & Fritid Marten
30 m2, Effective thickness 60 mm
Carcass/wood thickness
Knotted timber 60 x 130 mm. Also available in 44 and 90 mm timber thickness
Windows & doors
- Openable windows: 2-glazed insulating glass windows (depending on choice). U-value 2.6. Optional 3-glass U-value 1.1
- 2 pcs. Window 1100 x 650 mm, 1 window 1000 x 2000 mm (not openable), 1 crescent window (not openable)
- 2 windows 650 x 650 mm (openable, e.g. WC/loft window)

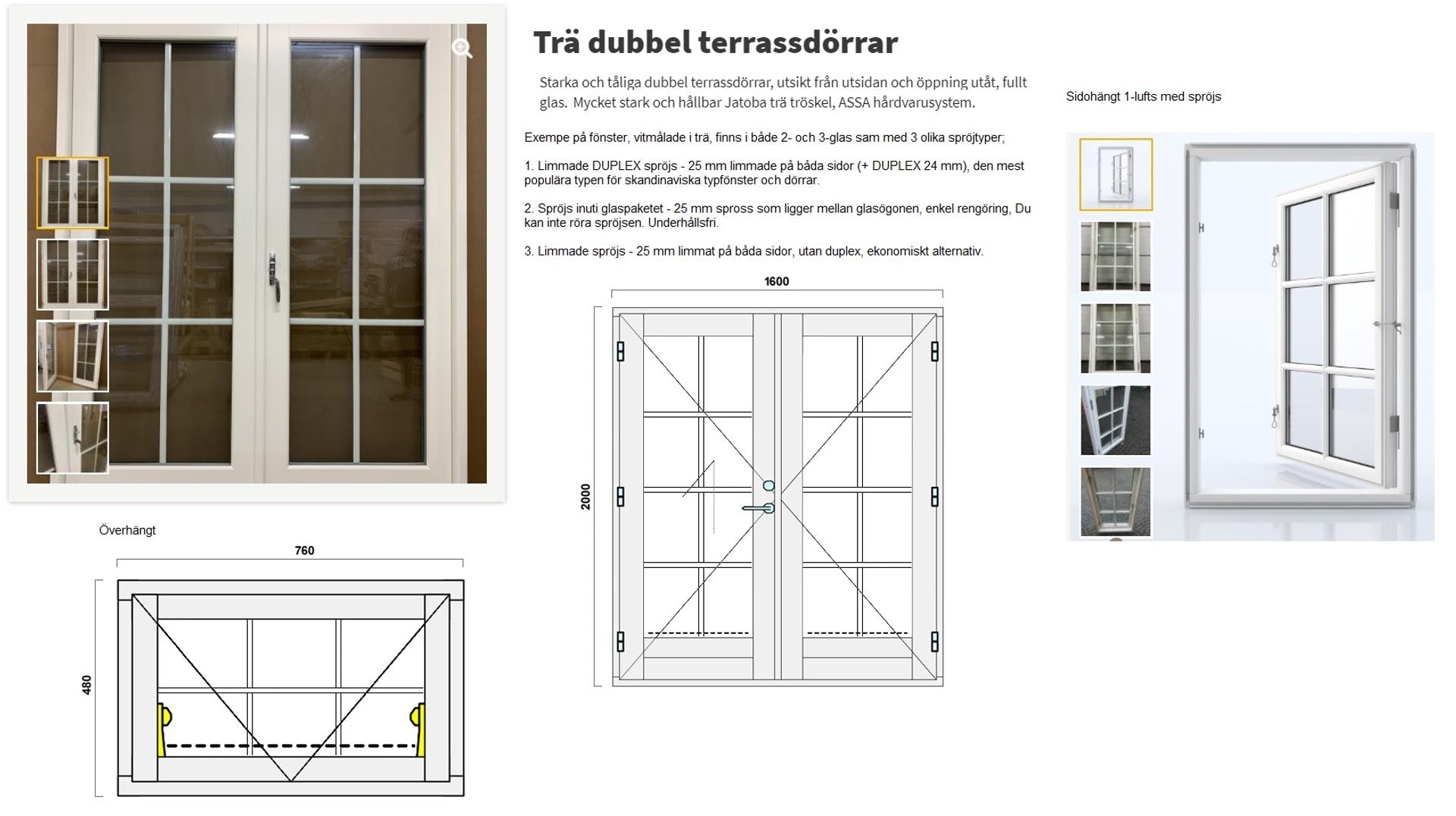

- 1 window. Double balcony/entrance door 1600 x 2000 mm, insulated glass. Optional: glazing bars
- Interior doors: 2 pcs. 800 x 2000 mm. Staircase ladder to the loft: 1 included
- Not included: Roof cladding, insulation, screws and nails

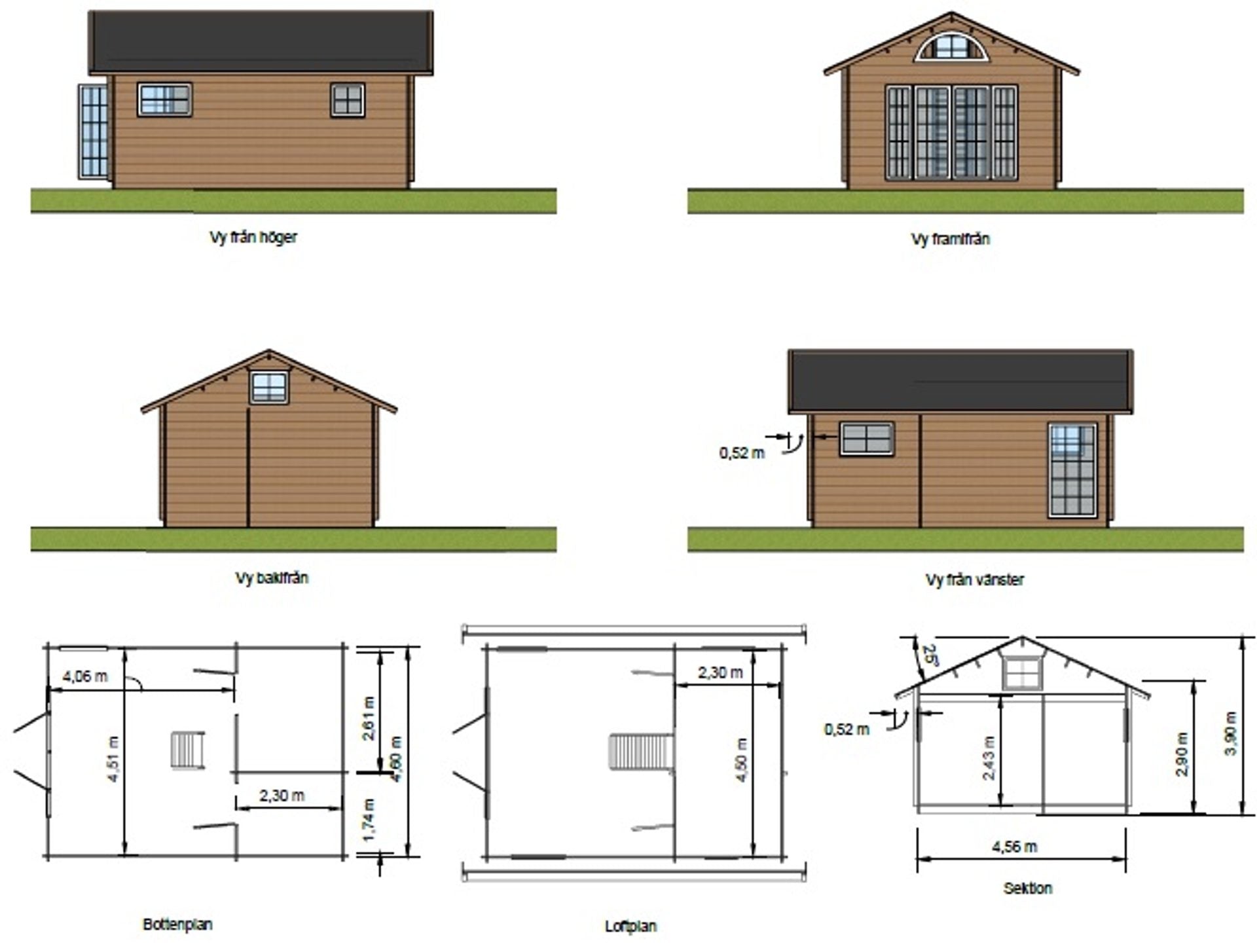

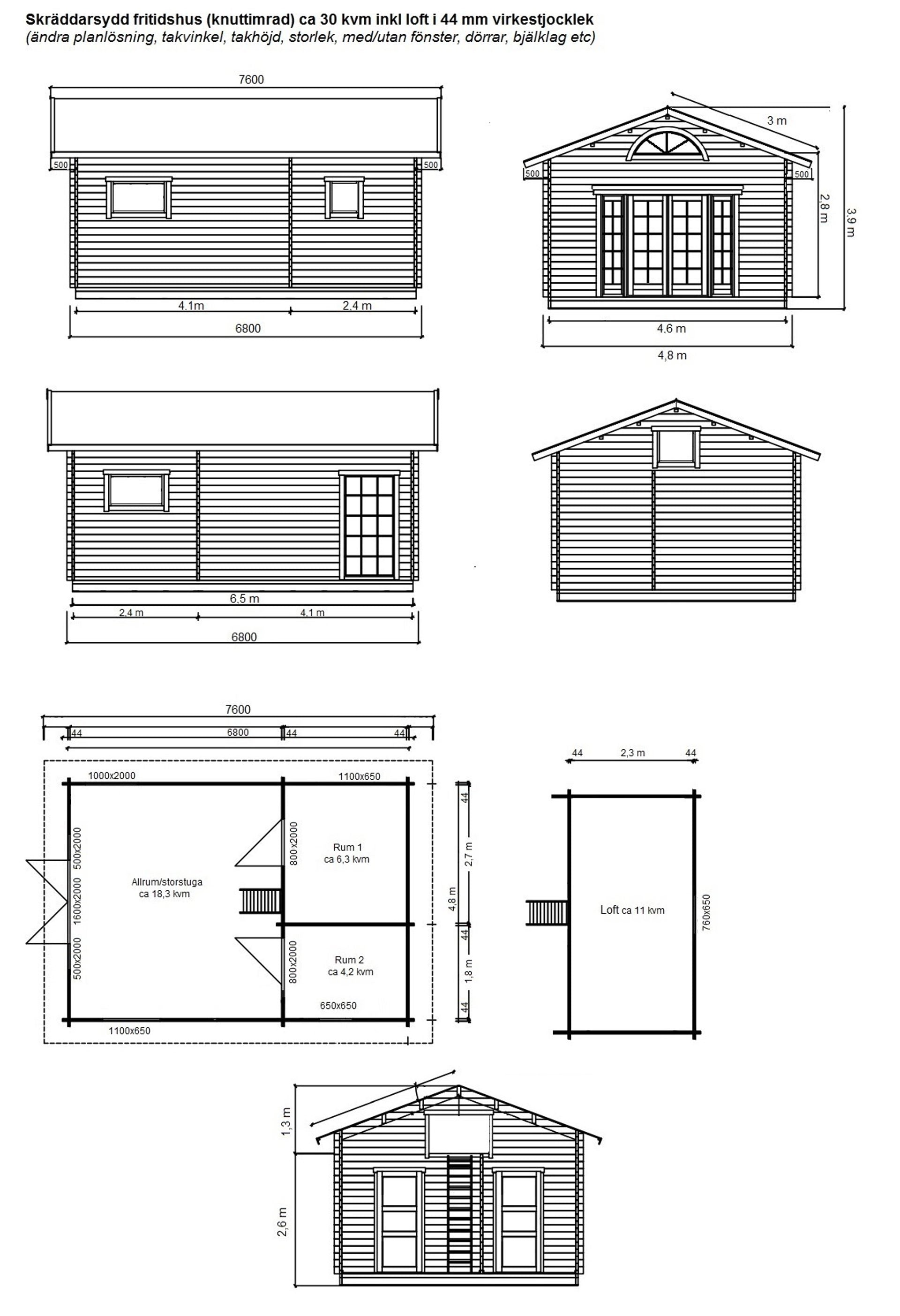

Floor plan

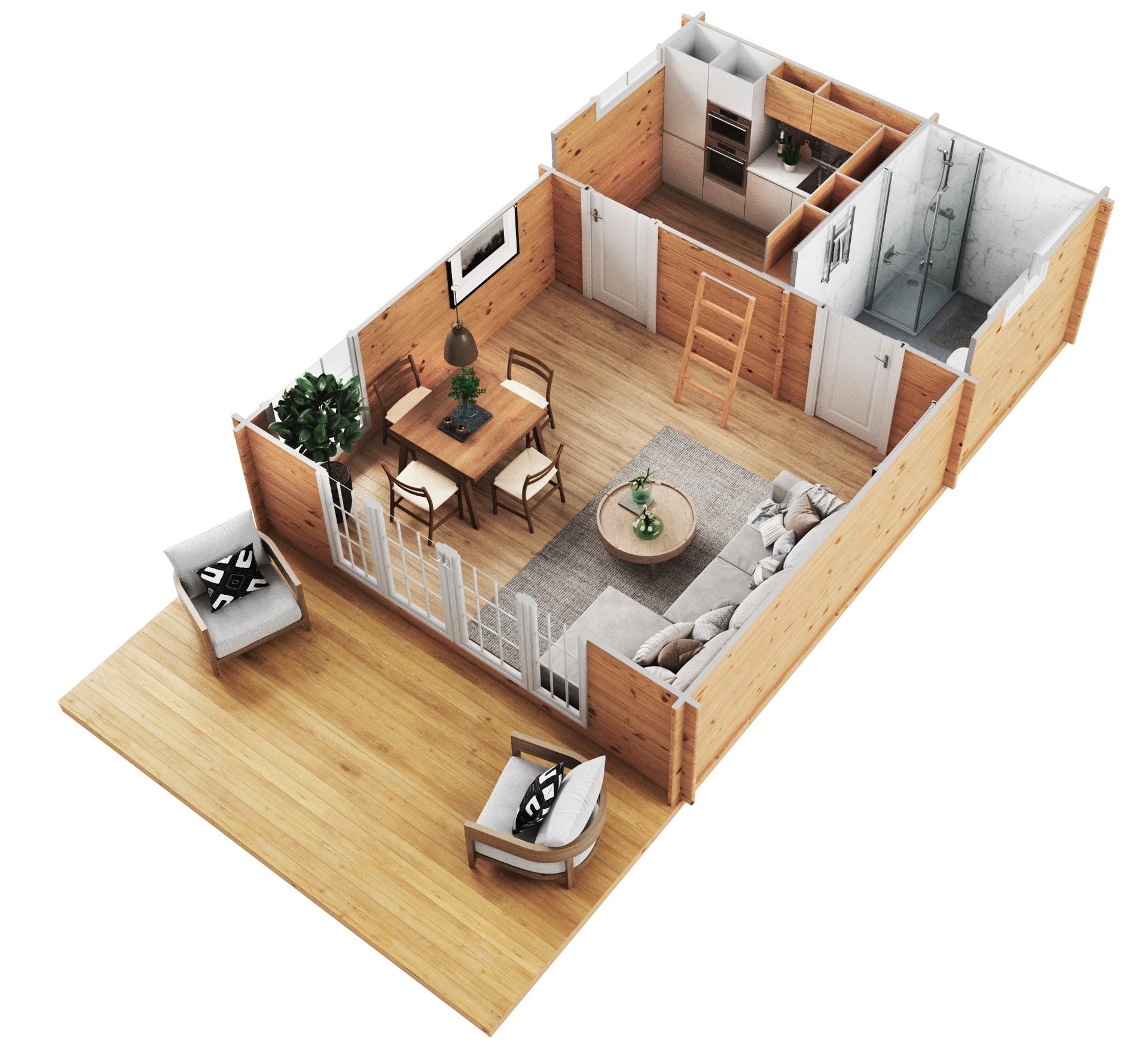

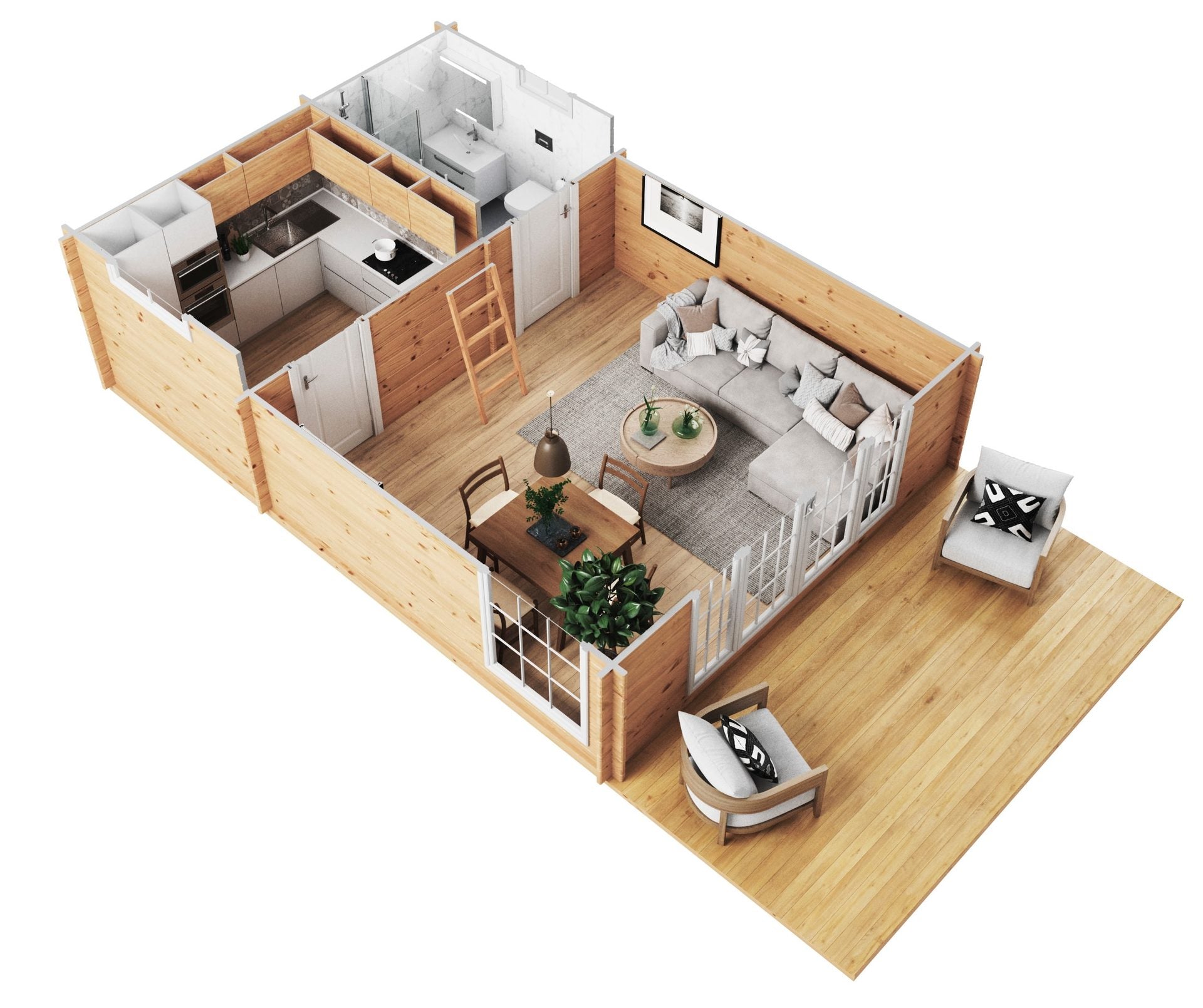

Building area: approx. 30 sqm, Loft approx. 11 sqm (optional), (loft), Living room: approx. 18.3 sqm, Kitchen/WC room: 4.2 sqm, Bedroom/room: 6.3 sqm, Sleeping loft: approx. 11 sqm (the free maximum height of the loft in the centre is approx. 1.6 m), Ceiling heights: Living room approx. 3.8 m vs approx. 2.2 m.
In addition to a smart floor plan with a practical and cosy loft, the holiday home "Mårten" also has a lot of character that allows lovely light to enter. Mårten is available in 25 or 30 sqm versions, with an associated loft of about 9-10 sqm (depending on size).
Mårten gives you a nice cottage with three rooms of different sizes that you can, for example, furnish as a living room / large cottage + bedroom + kitchen / pantry or kitchen / lounge + office + WC / bath / shower.

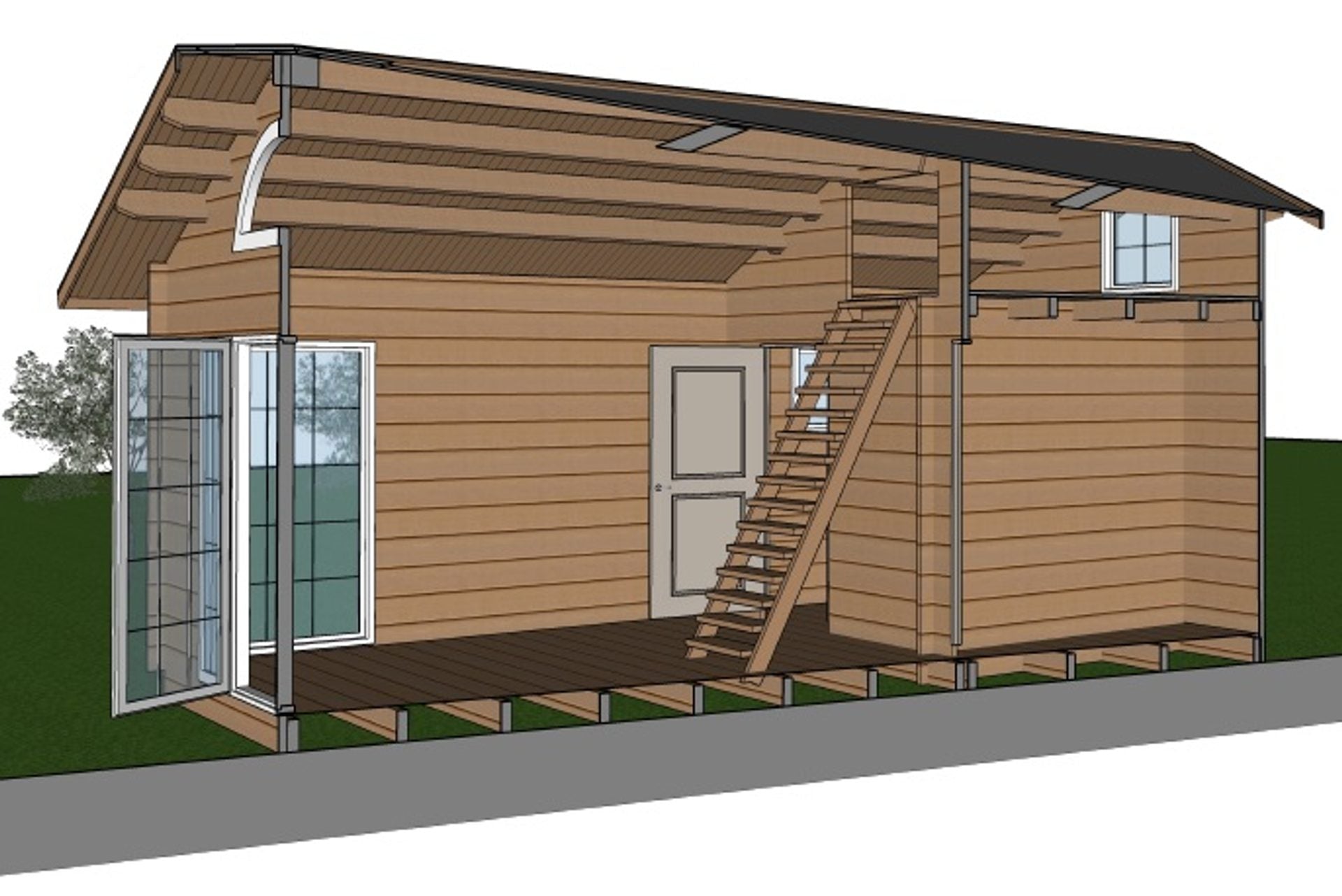

High quality and stable construction, coarse roof ridges and finely planed 28 mm wooden floor. Mårten is suitable as a summer house, guest house or holiday home all year round and can easily be additionally insulated, in the floor, roof and/or walls outside/inside.
30 m2, Effective thickness 60 mm
Carcass/wood thickness
Knotted timber 60 x 130 mm. Also available in 44 and 90 mm timber thickness
Windows & doors
- Openable windows: 2-glazed insulating glass windows (depending on choice). U-value 2.6. Optional 3-glass U-value 1.1
- 2 pcs. Window 1100 x 650 mm, 1 window 1000 x 2000 mm (not openable), 1 crescent window (not openable)
- 2 windows 650 x 650 mm (openable, e.g. WC/loft window)
- 1 window. Double balcony/entrance door 1600 x 2000 mm, insulated glass. Optional: glazing bars
- Interior doors: 2 pcs. 800 x 2000 mm. Staircase ladder to the loft: 1 included
- Not included: Roof cladding, insulation, screws and nails
Floor plan
Building area: approx. 30 sqm, Loft approx. 11 sqm (optional), (loft), Living room: approx. 18.3 sqm, Kitchen/WC room: 4.2 sqm, Bedroom/room: 6.3 sqm, Sleeping loft: approx. 11 sqm (the free maximum height of the loft in the centre is approx. 1.6 m), Ceiling heights: Living room approx. 3.8 m vs approx. 2.2 m.
In addition to a smart floor plan with a practical and cosy loft, the holiday home "Mårten" also has a lot of character that allows lovely light to enter. Mårten is available in 25 or 30 sqm versions, with an associated loft of about 9-10 sqm (depending on size).
Mårten gives you a nice cottage with three rooms of different sizes that you can, for example, furnish as a living room / large cottage + bedroom + kitchen / pantry or kitchen / lounge + office + WC / bath / shower.
High quality and stable construction, coarse roof ridges and finely planed 28 mm wooden floor. Mårten is suitable as a summer house, guest house or holiday home all year round and can easily be additionally insulated, in the floor, roof and/or walls outside/inside.
Addons
Extra Inner Door
Extra Timber Yard
Usually, you add one or more extra layers of timber if you intend to insulate your cottage, for example the internal roof, in which case a slightly higher roof height may be appropriate. But it is just as possible to insulate the roof from the outside from above, either way, depending on whether you want visible ridges in the inner roof or panelling.
Window bars
Specification
| Weight | Width | Height | Length | Roof pitch | Roof bearing capacity | mute | Floor | Tak | House type | Material (wood) | Building area | Takyta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4200 kg | approx. 4.6 m | approx. 3.9 m | approx. 6.6 m | 25 degrees (optional) | approx. 180-250 kg/sqm (depending on timber thickness & ridges) | Planed and knotted wall profiles, 60 x 130 mm or 90 x 130 mm | 28 mm finely planed on floor joists 60 x 140/160/180 mm | 19 mm x 100 mm planed raw fibreboard on roof ridges 60 x 140/160/180 mm | knot-timbered loft cabin, any timber thickness 44, 60 or 90 mm (walls) | latewood Nordic spruce, untreated and unpainted wood | 30 square metres | about 46 square metres |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| N/A | N/A | N/A | N/A | 4200kg |
Documents
| Technical Drawing (SV) | Open |
|---|
