Cottage JM Stugor & Fritid Duck 85 m2
Effective thickness 90 mm
House type
Knotted timber 5 rooms, 2 levels, 90 mm timber thickness. Also available in 60 mm.
This very beautiful and spacious cottage works equally well as a holiday home as a permanent home for the small family with its 5 rooms spread over 2 floors (a total of about 85 sqm, 44 + 41 sqm). The house has a lot of character with both round and triangular windows, loft and spacious dormer with standing height. Anke is delivered as a kit that handy people can put together, all parts are numbered and pre-cut - perfect "lego" for all do-it-yourselfers! Downstairs there is a living room of about 28.5 sqm, two separate rooms of about 7 sqm each, suitable for kitchen and WC, or bedroom. A really nice L-shaped staircase leading up to a spacious loft with a large open living room of about 26 sqm with a beautiful dormer window and a large bedroom of about 15 sqm, totalling about 41 sqm loft. The cottage has well-sized windows, in various modern shapes that allow large lovely light.
Windows & doors
- Openable windows: double-glazed insulating glass windows. 2 double windows (WxH) 1400 x 1000 mm, 3 windows 760 x 1000 mm and 2 round windows 800 mm diameter (gable window), 2 triangular windows (in the roof dome) 780 x 910 mm
- 1 entrance door (window door): 1000 x 2000 mm and 1 double door (full glass/altoglass door) 1400 x 2000 mm. Entrance door (window door): 1000 x 2000 mm and 1 double door (full glass/aluminium door) 1400 x 2000 mm, incl. lock, handle, keys, 3 interior doors: 800/900 x 2000 mm, incl. lock, handle.

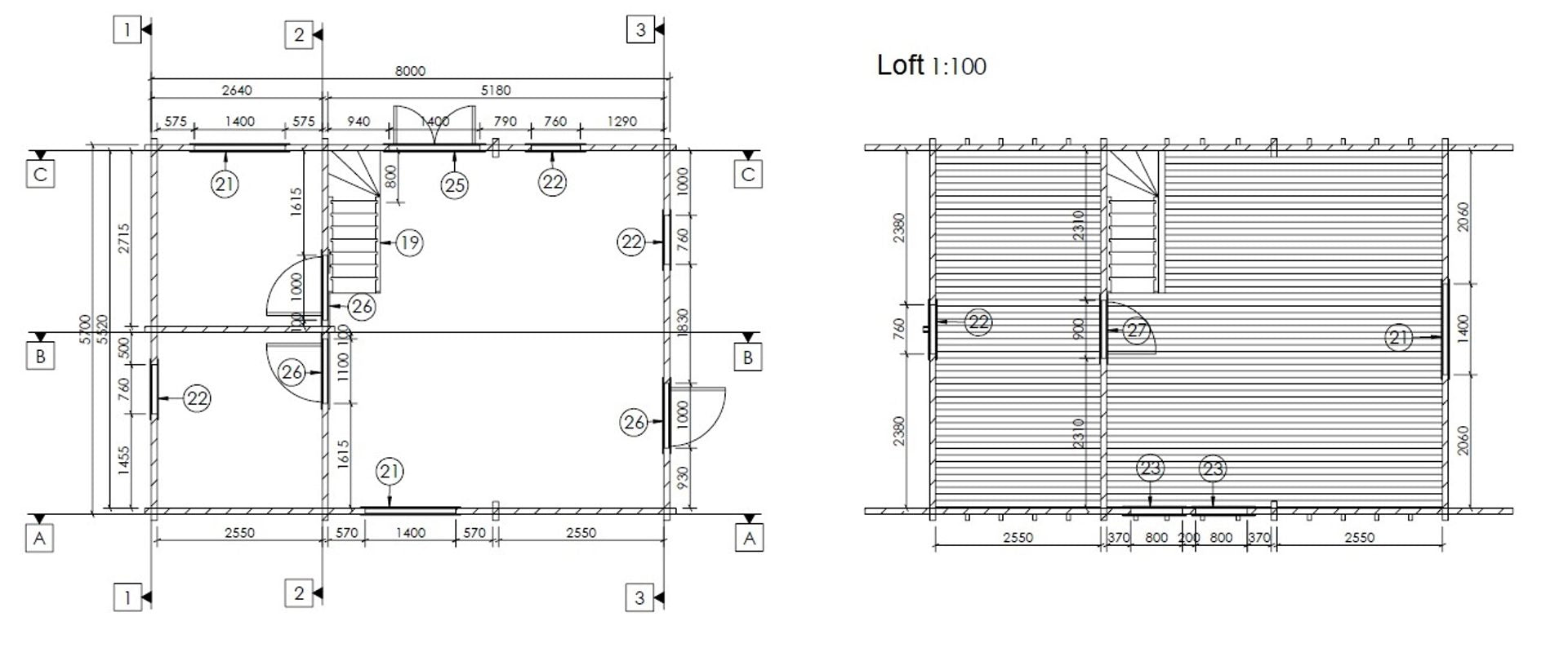

Floor plan
Building area: 45.2 sqm, Living area: approx. 85 sqm, approx. 44 sqm ground floor + attic approx. 41 sqm
Large cabin
approx. 28.5 sqm, Kitchen/room 1: approx. 7 sqm, Bedroom/WC/room 2: approx. 6.9 sqm, Upstairs/attic: living room approx. 26 sqm (the free maximum height of the attic in the centre is approx. 2.2 m) and 1 bedroom of approx. 15 sqm, Ceiling heights: ground floor: Large cottage, WC/kitchen/bedroom approx. 2.3 m, attic sloping roof/roof dormer standing height approx. 2.2 m
- 5 years warranty
- Spun roof & floor boards
- Heavily dimensioned roof ridges
- Heavy floor joists
- Fine planed floor and roof boards
- Very good fit on all parts
- Easy and fast assembly
- Marked, numbered and pre-cut parts
- Rubber seals & silicon (windows & doors)
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Nuttimbered walls with double hooks/particle board
- Strong glulam cross beams
- Glued timber door frame
- Parts supplied unfinished
- Pivot & side hung windows
- Trims & fittings
- Handles+cylinder locks+keys included for internal doors. Optional for exterior doors
- Window & door liners (for double glazed unpainted). Optional glazing bars available.
- Adjustable door hinges
Effective thickness 90 mm
House type
Knotted timber 5 rooms, 2 levels, 90 mm timber thickness. Also available in 60 mm.
This very beautiful and spacious cottage works equally well as a holiday home as a permanent home for the small family with its 5 rooms spread over 2 floors (a total of about 85 sqm, 44 + 41 sqm). The house has a lot of character with both round and triangular windows, loft and spacious dormer with standing height. Anke is delivered as a kit that handy people can put together, all parts are numbered and pre-cut - perfect "lego" for all do-it-yourselfers! Downstairs there is a living room of about 28.5 sqm, two separate rooms of about 7 sqm each, suitable for kitchen and WC, or bedroom. A really nice L-shaped staircase leading up to a spacious loft with a large open living room of about 26 sqm with a beautiful dormer window and a large bedroom of about 15 sqm, totalling about 41 sqm loft. The cottage has well-sized windows, in various modern shapes that allow large lovely light.
Windows & doors
- Openable windows: double-glazed insulating glass windows. 2 double windows (WxH) 1400 x 1000 mm, 3 windows 760 x 1000 mm and 2 round windows 800 mm diameter (gable window), 2 triangular windows (in the roof dome) 780 x 910 mm
- 1 entrance door (window door): 1000 x 2000 mm and 1 double door (full glass/altoglass door) 1400 x 2000 mm. Entrance door (window door): 1000 x 2000 mm and 1 double door (full glass/aluminium door) 1400 x 2000 mm, incl. lock, handle, keys, 3 interior doors: 800/900 x 2000 mm, incl. lock, handle.
Floor plan
Building area: 45.2 sqm, Living area: approx. 85 sqm, approx. 44 sqm ground floor + attic approx. 41 sqm
Large cabin
approx. 28.5 sqm, Kitchen/room 1: approx. 7 sqm, Bedroom/WC/room 2: approx. 6.9 sqm, Upstairs/attic: living room approx. 26 sqm (the free maximum height of the attic in the centre is approx. 2.2 m) and 1 bedroom of approx. 15 sqm, Ceiling heights: ground floor: Large cottage, WC/kitchen/bedroom approx. 2.3 m, attic sloping roof/roof dormer standing height approx. 2.2 m
- 5 years warranty
- Spun roof & floor boards
- Heavily dimensioned roof ridges
- Heavy floor joists
- Fine planed floor and roof boards
- Very good fit on all parts
- Easy and fast assembly
- Marked, numbered and pre-cut parts
- Rubber seals & silicon (windows & doors)
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Nuttimbered walls with double hooks/particle board
- Strong glulam cross beams
- Glued timber door frame
- Parts supplied unfinished
- Pivot & side hung windows
- Trims & fittings
- Handles+cylinder locks+keys included for internal doors. Optional for exterior doors
- Window & door liners (for double glazed unpainted). Optional glazing bars available.
- Adjustable door hinges
Addons
Option Front door
Front door JM Stugor & Fritid White
Right-hanging, 900 x 2000 mm, 1 - Large window with glazing bars
Right-hanging, 900 x 2100 mm, 1 - Large window with glazing bars
Left-hanging, 1000 x 2100 mm, 1 - Large window with glazing bars
Right-hanging, 1000 x 2100 mm, 1 - Large window with glazing bars
Left-hanging, 900 x 2000 mm, 2 - Half-moon windows with glazing bars
Right-hanging, 900 x 2000 mm, 2 - Half-moon windows with glazing bars
Left-hanging, 900 x 2100 mm, 2 - Half-moon windows with glazing bars
Right-hanging, 900 x 2100 mm, 2 - Half-moon windows with glazing bars
Left-hanging, 1000 x 2100 mm, 2 - Half-moon windows with glazing bars
Right-hanging, 1000 x 2100 mm, 2 - Half-moon windows with glazing bars
Extra Timber Yard
Usually, you add one or more extra layers of timber if you intend to insulate your cottage, for example the internal roof, in which case a slightly higher roof height may be appropriate. But it is just as possible to insulate the roof from the outside from above, either way, depending on whether you want visible ridges in the inner roof or panelling.
Extra Timber Yard JM Stugor & Fritid Anke
Mr Farstukvist
A classic front porch exudes a sense of welcome and warmth, and on rainy and snowy days, it also provides a cosy shelter. In the summer months, the porch is perfect for a coffee break, and in the winter it's the perfect place to fill with lanterns.
Farstukvist JM Stugor & Fritid
Specification
| Weight | Width | Height | Length | Roof pitch | Roof bearing capacity | mute | Floor | Tak | Material (wood) | Building area | Takyta | Boyta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8600 kg | 5,7 m | 4,9 m | 8 m | 29 degrees (house body) and canopy 50 degrees | about 250 kg/sqm | Planed and knotted timber wall profiles 60 x 130 | 28 mm finely planed on floor joists 60 x 140/160/180 mm | 19 mm x 100 mm finely planed raw fibreboard on roof ridges 60 x 200 or 280 mm | latewood Nordic spruce, untreated and unpainted wood | 45.6 square metres | about 84 square metres | approx. 85 sqm (floor area approx. 44 sqm + 41 sqm loft) |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| 1200mm | 900mm | 6000mm | N/A | N/A |
| 1200mm | 900mm | 6000mm | N/A | N/A |
| 1200mm | 900mm | 6000mm | N/A | 8600kg |
Documents
| Product Sheet | Open |
|---|
