Cottage JM Stugor & Fritid Harry 40 m2
Effective thickness 90 mm
Carcass/wood thickness
Knotted timber 90 x 130 mm, also available in 60 mm timber thickness
Beautiful, open and spacious log cabin of a total of about 40 sqm living space (21 sqm living room and separate WC/room of 3.2 sqm and roofed corner balcony of about 5 sqm and a loft of about 15 sqm). Lots of light.
- Floor and ceiling boards are finely planed and tongued and grooved for good dimensional stability
- The timber is durable late-grown Nordic spruce
- 2-glazing/ISO as standard in windows and doors
Tak
- 19x100 mm plywood, finely planed and well-fitted for good stability
- Roof boxes pre-cut in 60 x 160 mm
- Wind boards raw plan
- Eaves boards
Windows
- Opening windows: double-glazed insulating glass windows. Glazing bars available as an option.
- Exterior lining. Real double glazing/ISO (U-value 2.6)
- Push-buttons/knobs/handles and fittings
- 2-way openable (pivot & side-hung)
Doors
- Doors
- Exterior lining
- Enterior door with window
- Interior wooden doors + lining
- Handle+cylinder lock+keys
- Adjustable door hinges
Floor
- Flooring beams 60 x 140 mm, pre-cut
- Fine planed wood flooring in 28 mm thickness
- Floor mouldings
- Flooring, fine planed wood flooring in 28 mm
Windows & doors
- Openable windows: double-glazed insulating glass windows with glazing bars
- 2 double-glazed windows 1400 x 1000 mm, 2 windows with glazing bars 1000 x 760 mm and 1 double-glazed window with glazing bars 1000 x 760 mm. 500 x 500 mm
- 1 pc. Entrance door (with/without glass): 900 x 2000 mm, incl. lock, handle, keys, insulating glass with glazing bars, Interior doors: 1 pc. 900 x 2000 mm, incl. lock and handle, Not included: Roof cladding, insulation, screws and nails

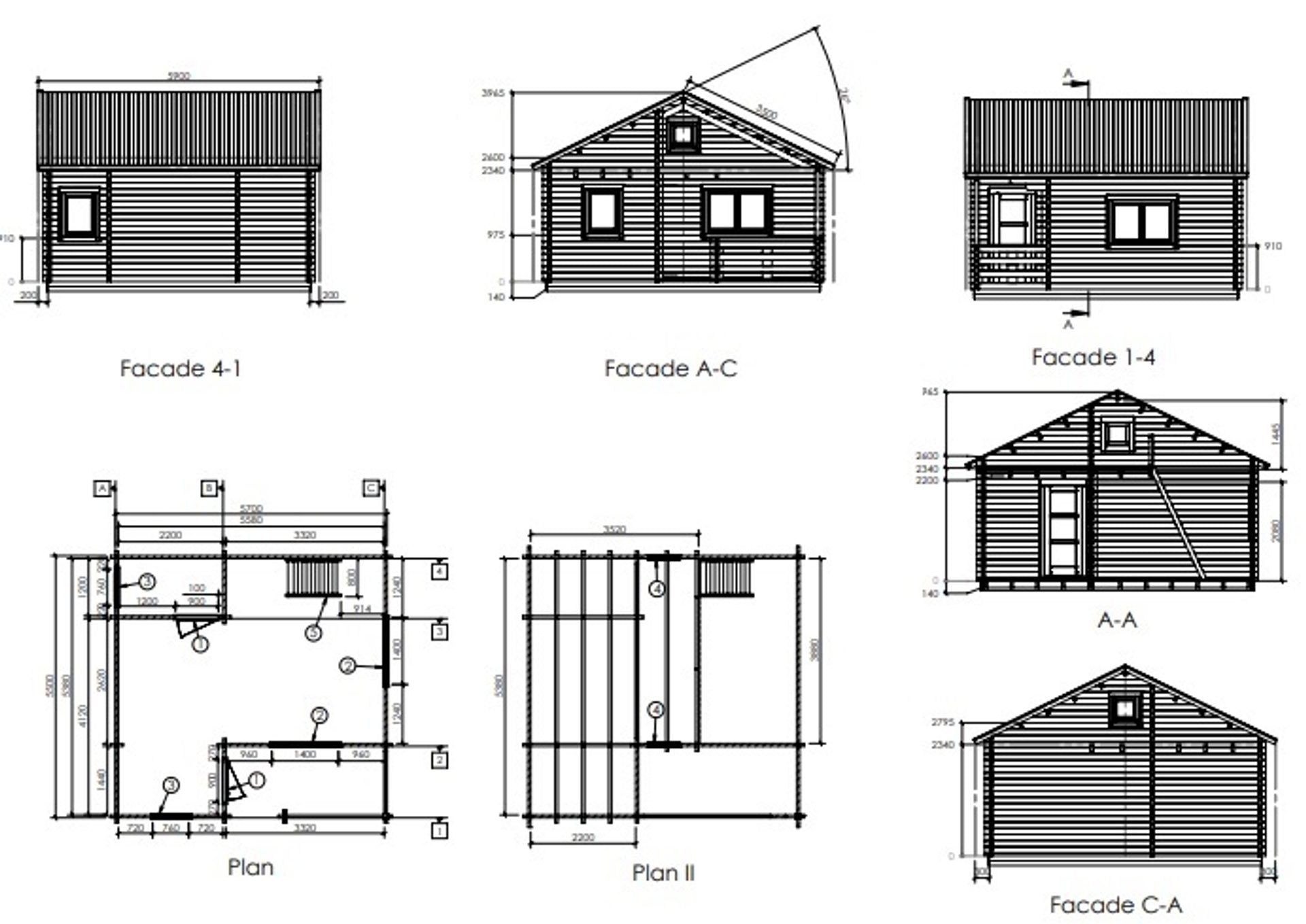

Floor plan
Building area: 31.35 sqm, Living area approx. 41 sqm, Living room: approx. 21 sqm, WC: approx. 3.2 sqm, Loft: approx. 15 sqm. Ceiling heights: Living room approx. 3.9 m. WC approx. 2.5 m
- 5 years warranty
- Spun roof & floor boards
- Heavily dimensioned roof ridges
- Heavy floor joists
- Fine planed floor and roof boards
- Very good fit on all parts
- Easy and fast assembly
- Marked, numbered and pre-cut parts
- Rubber seals & silicon (windows & doors)
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Nuttimbered walls with double hooks/particle board
- Strong glulam cross beams
- Glued timber door frame
- Parts supplied unfinished
- Pivot & side hung windows
- Trims & fittings
- Handles+cylinder locks+keys included for internal doors. Optional for exterior doors
- Window & door liners (for double glazed unpainted). Optional glazing bars available.
- Adjustable door hinges
Effective thickness 90 mm
Carcass/wood thickness
Knotted timber 90 x 130 mm, also available in 60 mm timber thickness
Beautiful, open and spacious log cabin of a total of about 40 sqm living space (21 sqm living room and separate WC/room of 3.2 sqm and roofed corner balcony of about 5 sqm and a loft of about 15 sqm). Lots of light.
- Floor and ceiling boards are finely planed and tongued and grooved for good dimensional stability
- The timber is durable late-grown Nordic spruce
- 2-glazing/ISO as standard in windows and doors
Tak
- 19x100 mm plywood, finely planed and well-fitted for good stability
- Roof boxes pre-cut in 60 x 160 mm
- Wind boards raw plan
- Eaves boards
Windows
- Opening windows: double-glazed insulating glass windows. Glazing bars available as an option.
- Exterior lining. Real double glazing/ISO (U-value 2.6)
- Push-buttons/knobs/handles and fittings
- 2-way openable (pivot & side-hung)
Doors
- Doors
- Exterior lining
- Enterior door with window
- Interior wooden doors + lining
- Handle+cylinder lock+keys
- Adjustable door hinges
Floor
- Flooring beams 60 x 140 mm, pre-cut
- Fine planed wood flooring in 28 mm thickness
- Floor mouldings
- Flooring, fine planed wood flooring in 28 mm
Windows & doors
- Openable windows: double-glazed insulating glass windows with glazing bars
- 2 double-glazed windows 1400 x 1000 mm, 2 windows with glazing bars 1000 x 760 mm and 1 double-glazed window with glazing bars 1000 x 760 mm. 500 x 500 mm
- 1 pc. Entrance door (with/without glass): 900 x 2000 mm, incl. lock, handle, keys, insulating glass with glazing bars, Interior doors: 1 pc. 900 x 2000 mm, incl. lock and handle, Not included: Roof cladding, insulation, screws and nails
Floor plan
Building area: 31.35 sqm, Living area approx. 41 sqm, Living room: approx. 21 sqm, WC: approx. 3.2 sqm, Loft: approx. 15 sqm. Ceiling heights: Living room approx. 3.9 m. WC approx. 2.5 m
- 5 years warranty
- Spun roof & floor boards
- Heavily dimensioned roof ridges
- Heavy floor joists
- Fine planed floor and roof boards
- Very good fit on all parts
- Easy and fast assembly
- Marked, numbered and pre-cut parts
- Rubber seals & silicon (windows & doors)
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Nuttimbered walls with double hooks/particle board
- Strong glulam cross beams
- Glued timber door frame
- Parts supplied unfinished
- Pivot & side hung windows
- Trims & fittings
- Handles+cylinder locks+keys included for internal doors. Optional for exterior doors
- Window & door liners (for double glazed unpainted). Optional glazing bars available.
- Adjustable door hinges
Addons
Option Front door
Extra Timber Yard
Usually, you add one or more extra layers of timber if you intend to insulate your cottage, for example the internal roof, in which case a slightly higher roof height may be appropriate. But it is just as possible to insulate the roof from the outside from above, either way, depending on whether you want visible ridges in the inner roof or panelling.
Window bars
Specification
| Weight | Width | Height | Length | Roof pitch | Roof bearing capacity | mute | Floor | Tak | House type | Building area | Material (wood).1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4600 kg | 5,5 m | 3.95 m vs 2.56 m | 5,7 m | 26 degrees | 250 kg/sqm | Planed and knotted timber wall profiles 60 x 130 | 28 mm finely planed on floor joists 60 x 140/160/180 mm | 19 mm x 100 mm finely planed raw fibreboard on roof ridges 60 x 140/160/180 mm | knotted timber, roof corner balcony, optional timber thickness 60 or 90 mm (walls) | 31.35 square metres | latewood Nordic spruce, untreated and unpainted wood |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| 1200mm | 900mm | 6000mm | N/A | 4600kg |
| 1200mm | 900mm | 6000mm | N/A | N/A |
| 1200mm | 900mm | 6000mm | N/A | N/A |
