Cottage JM Stugor & Fritid Funkis 15 m2
Saddleback roof, Effective thickness 68 mm
Carcass/wood thickness
Knotted timber 68 x 135 mm. Also available in 44 mm timber thickness

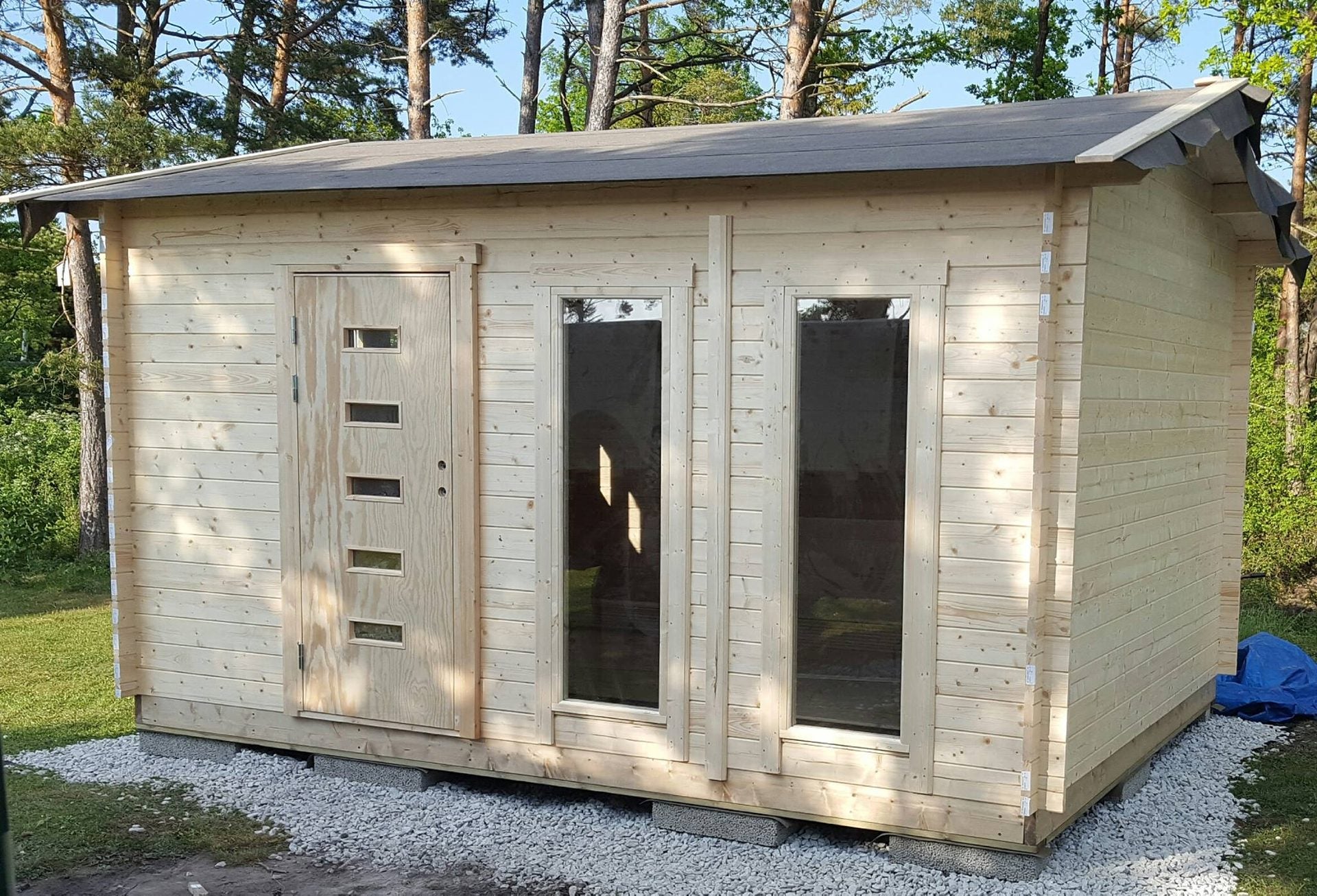

Funkisstugan is a luxurious and modern 15 square metre shed with a choice of saddle or pulpit roof (S vs P). The entrance door is available in various designs with windows (e.g. round, long narrow, crescent-shaped window) and two large panoramic windows give the cabin a very pleasant character and lovely light - suitable as a home office, guest cottage or relaxation cabin. Suitable for most environments! Open floor plan that can easily be divided into rooms.
- Floor and ceiling boards are finely planed and tongued and grooved for good dimensional stability
- The timber is durable late-grown Nordic spruce
- 2-glazing/ISO as standard in windows and doors
Tak
- 19x100 mm plywood, finely planed and good fit for good stability
- Roof boxes pre-cut in 70 x 190 mm
- Wind boards raw plan
- Eave boards
- S=saddle roof or P=pulpit roof
Windows
- Lining on the outside (untreated).
- Opening windows: 2-pane insulating glass windows. Glazing bars available as an option. push-buttons/knobs/handles and fittings
Doors
- Exterior lining included untreated
- Enter door with window (painted white)
Floor
- Floor in fine planed wood 19 mm thick
- Floor joists 75x145 mm + 70x50 mm
Windows & doors
- Opening windows: 2-glass insulated windows. Windows: 1 625x625 mm, 2 600x1570 mm and 1 window door (painted white) Optional: round window D600 mm (diameter, openable) +4800 SEK/each Not included: Roof cladding, insulation, screws and nails
Floor plan
Building area: approx. 39 square metres
- 5 years warranty
- Spun roof & floor boards
- Heavily dimensioned roof ridges
- Heavy floor joists
- Fine planed floor and roof boards
- Very good fit on all parts

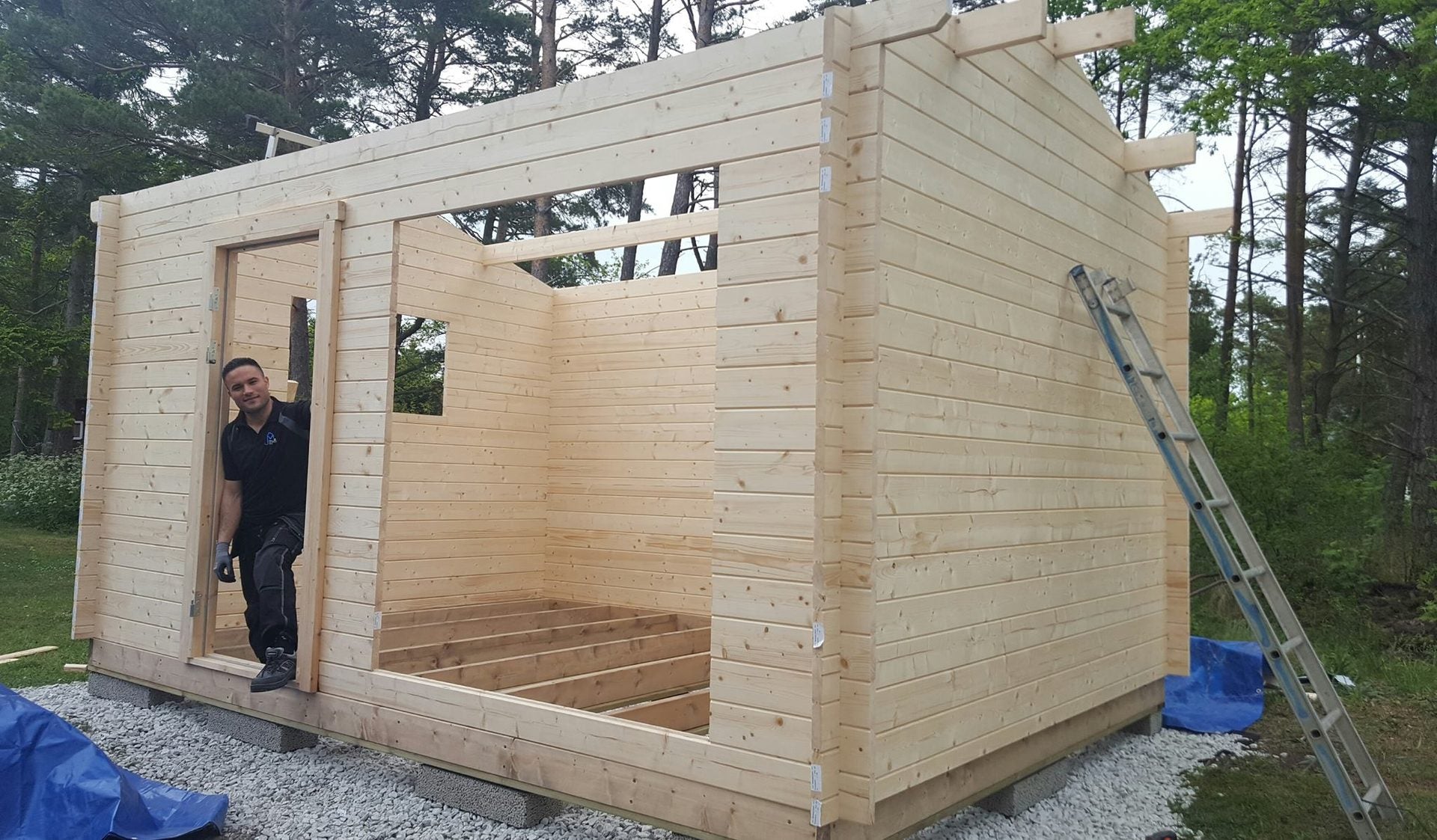

- Easy and fast assembly
- Marked, numbered and pre-cut parts
- Rubber seals & silicon (windows & doors)
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Nuttimbered walls with double hooks/particle board
- Strong glulam cross beams
- Glued timber door frame
- Parts supplied unfinished
- Pivot & side hung windows
- Trims & fittings
- Handles+cylinder locks+keys included for internal doors. Optional for exterior doors
- Window & door liners (for double glazed unpainted). Optional glazing bars available.
- Adjustable door hinges
Cottage JM Stugor & Fritid Funkis 15 m2
Sale price€7.580,00
Regular price (/)
Saddleback roof, Effective thickness 68 mm
Carcass/wood thickness
Knotted timber 68 x 135 mm. Also available in 44 mm timber thickness
Funkisstugan is a luxurious and modern 15 square metre shed with a choice of saddle or pulpit roof (S vs P). The entrance door is available in various designs with windows (e.g. round, long narrow, crescent-shaped window) and two large panoramic windows give the cabin a very pleasant character and lovely light - suitable as a home office, guest cottage or relaxation cabin. Suitable for most environments! Open floor plan that can easily be divided into rooms.
- Floor and ceiling boards are finely planed and tongued and grooved for good dimensional stability
- The timber is durable late-grown Nordic spruce
- 2-glazing/ISO as standard in windows and doors
Tak
- 19x100 mm plywood, finely planed and good fit for good stability
- Roof boxes pre-cut in 70 x 190 mm
- Wind boards raw plan
- Eave boards
- S=saddle roof or P=pulpit roof
Windows
- Lining on the outside (untreated).
- Opening windows: 2-pane insulating glass windows. Glazing bars available as an option. push-buttons/knobs/handles and fittings
Doors
- Exterior lining included untreated
- Enter door with window (painted white)
Floor
- Floor in fine planed wood 19 mm thick
- Floor joists 75x145 mm + 70x50 mm
Windows & doors
- Opening windows: 2-glass insulated windows. Windows: 1 625x625 mm, 2 600x1570 mm and 1 window door (painted white) Optional: round window D600 mm (diameter, openable) +4800 SEK/each Not included: Roof cladding, insulation, screws and nails

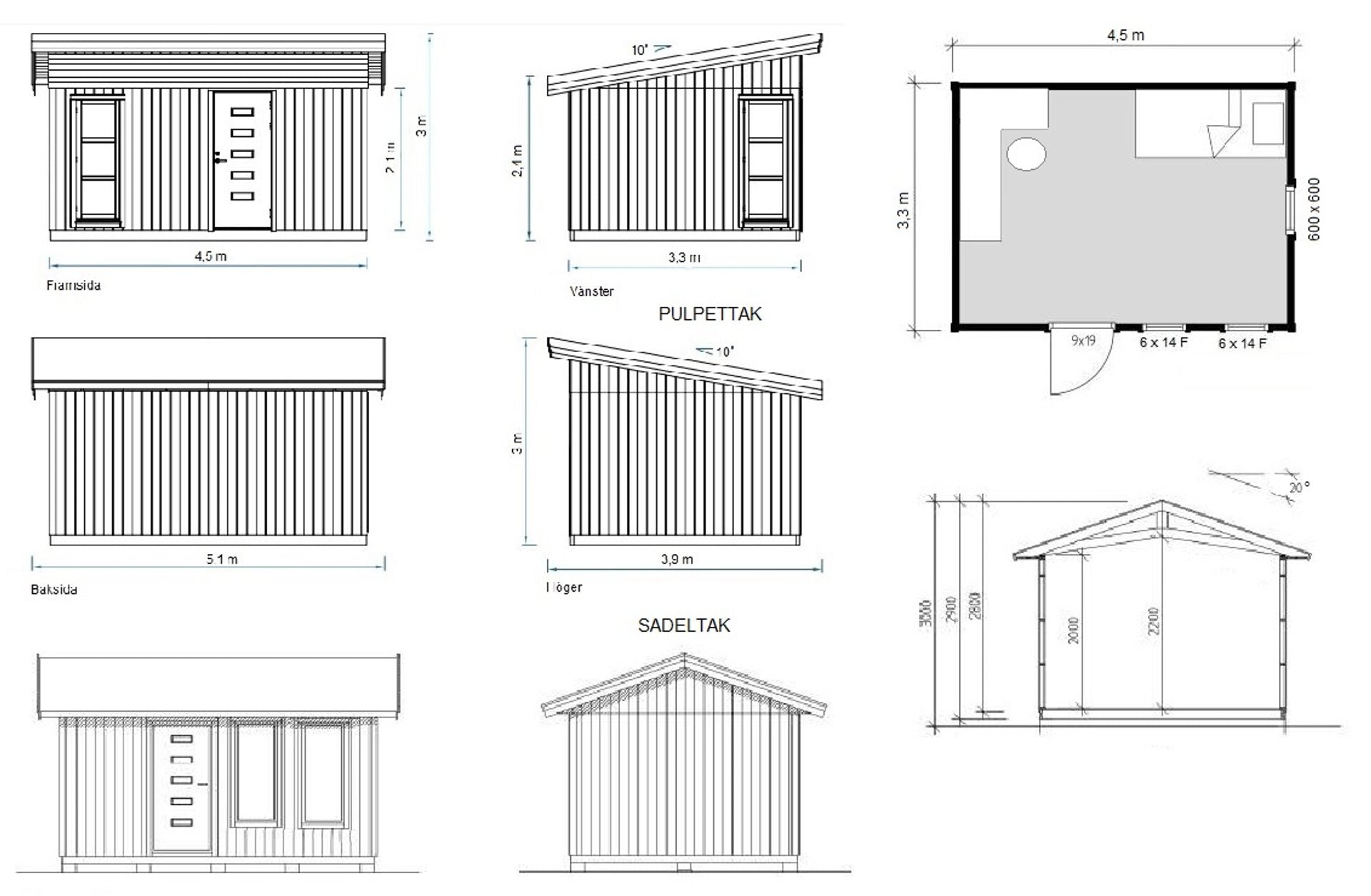

Floor plan
Building area: approx. 39 square metres
- 5 years warranty
- Spun roof & floor boards
- Heavily dimensioned roof ridges
- Heavy floor joists
- Fine planed floor and roof boards
- Very good fit on all parts
- Easy and fast assembly
- Marked, numbered and pre-cut parts
- Rubber seals & silicon (windows & doors)
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Nuttimbered walls with double hooks/particle board
- Strong glulam cross beams
- Glued timber door frame
- Parts supplied unfinished
- Pivot & side hung windows
- Trims & fittings
- Handles+cylinder locks+keys included for internal doors. Optional for exterior doors
- Window & door liners (for double glazed unpainted). Optional glazing bars available.
- Adjustable door hinges
Addons
Option Front door
Front door JM Stugor & Fritid White
Click to select
Selected
Front door JM Stugor & Fritid White
Right-hanging, 900 x 2000 mm, 1 - Large window with glazing bars
Right-hanging, 900 x 2000 mm, 1 - Large window with glazing bars
Click to select
Selected
Click to select
Selected
Front door JM Stugor & Fritid White
Right-hanging, 900 x 2100 mm, 1 - Large window with glazing bars
Right-hanging, 900 x 2100 mm, 1 - Large window with glazing bars
Click to select
Selected
Front door JM Stugor & Fritid White
Left-hanging, 1000 x 2100 mm, 1 - Large window with glazing bars
Left-hanging, 1000 x 2100 mm, 1 - Large window with glazing bars
Click to select
Selected
Front door JM Stugor & Fritid White
Right-hanging, 1000 x 2100 mm, 1 - Large window with glazing bars
Right-hanging, 1000 x 2100 mm, 1 - Large window with glazing bars
Click to select
Selected
Front door JM Stugor & Fritid White
Left-hanging, 900 x 2000 mm, 2 - Half-moon windows with glazing bars
Left-hanging, 900 x 2000 mm, 2 - Half-moon windows with glazing bars
Click to select
Selected
Front door JM Stugor & Fritid White
Right-hanging, 900 x 2000 mm, 2 - Half-moon windows with glazing bars
Right-hanging, 900 x 2000 mm, 2 - Half-moon windows with glazing bars
Click to select
Selected
Front door JM Stugor & Fritid White
Left-hanging, 900 x 2100 mm, 2 - Half-moon windows with glazing bars
Left-hanging, 900 x 2100 mm, 2 - Half-moon windows with glazing bars
Click to select
Selected
Front door JM Stugor & Fritid White
Right-hanging, 900 x 2100 mm, 2 - Half-moon windows with glazing bars
Right-hanging, 900 x 2100 mm, 2 - Half-moon windows with glazing bars
Click to select
Selected
Front door JM Stugor & Fritid White
Left-hanging, 1000 x 2100 mm, 2 - Half-moon windows with glazing bars
Left-hanging, 1000 x 2100 mm, 2 - Half-moon windows with glazing bars
Click to select
Selected
Front door JM Stugor & Fritid White
Right-hanging, 1000 x 2100 mm, 2 - Half-moon windows with glazing bars
Right-hanging, 1000 x 2100 mm, 2 - Half-moon windows with glazing bars
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected
Click to select
Selected

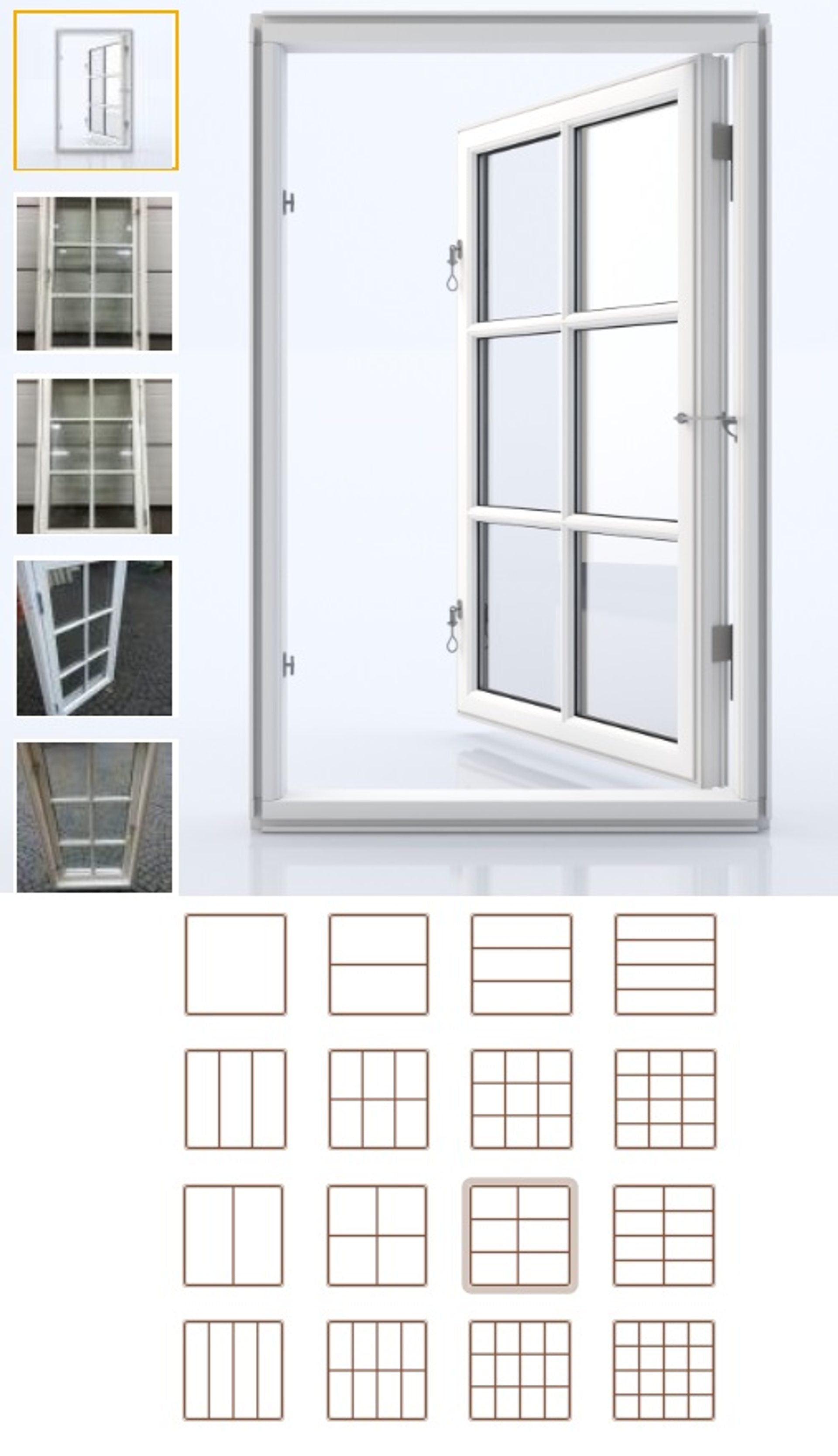

Window bars
Fönsterspröjs JM Stugor & Fritid
Glued bar - 25 mm glued bar on both sides of the package, without duplex, economical option.
Click to select
Selected
Specification
| Weight | Width | Height | Length | Roof pitch | Roof bearing capacity | mute | Floor | Tak | House type | Building area | Takyta | Material (wood).1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2250 kg | 4,66 m | wall height 2.16 m, ceiling height 2.78 m | 3,46 m | 9 degrees (pulpit roof) or 25 (gable roof) | 250 kg/sqm | Planed and knotted wall profiles 44 x 135 mm | 19 mm finely planed floorboards. Floor joists 70 x 50 mm | 19 mm x 100 mm planed raw fibreboard on roof ridges 70 x 190mm | knotted timber pool/spa cabin, any timber thickness 44 or 68 mm (walls) | about 15 square metres | about 20.2 square metres | latewood Nordic spruce, untreated and unpainted wood |
Package Dimensions
| Width | Height | Depth | Volume | Weight |
|---|---|---|---|---|
| 1150mm | 900mm | 6000mm | N/A | 2250kg |
| 1150mm | 900mm | 6000mm | N/A | N/A |
